DIN-Rail Metal Casing Models Available

Metal Casing Models SeriesLESA120D12

Universal AC Input,120W Output Power,100% full load burn-in test, CE Approved, Standard DIN-rail mount, Protection: Short circuit / Overload / Over Voltage, Cooling by free air convection, LED Indicator for power on.

Output Voltage (V DC): 12V DC
Output Power (Watt): 120W

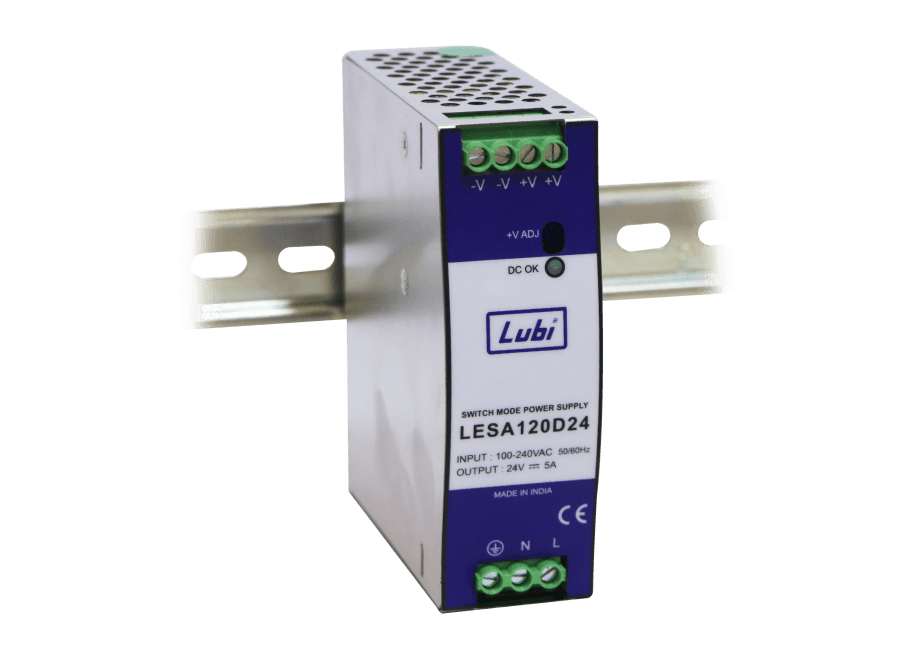

Metal Casing Models SeriesLESA120D24

Output Voltage (V DC): 24V DC
Output Power (Watt): 120W

Metal Casing Models SeriesLESA120D48

Output Voltage (V DC): 48V DC
Output Power (Watt): 120W

Metal Casing Models SeriesLESA150D24

Universal AC Input,150W Output Power,100% full load burn-in test, CE Approved, Standard DIN-rail mount, Protection: Short circuit / Overload / Over Voltage, Cooling by free air convection, LED Indicator for power on.

Output Voltage (V DC): 24V DC
Output Power (Watt): 150W

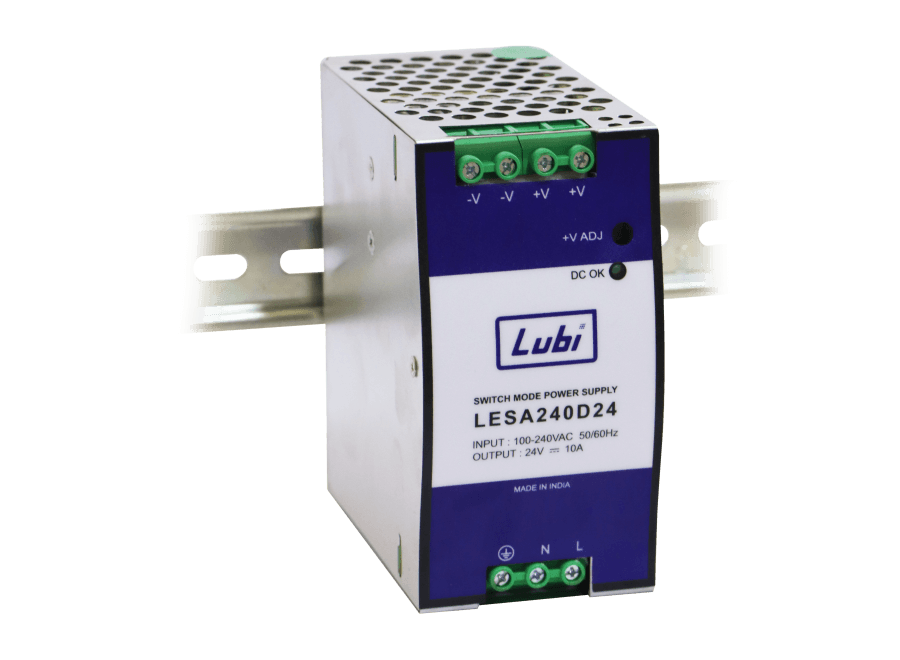

Metal Casing Models SeriesLESA240D24

Universal AC Input,240W Output Power,100% full load burn-in test, CE Approved, Standard DIN-rail mount, Protection: Short circuit / Overload / Over Voltage, Cooling by free air convection, LED Indicator for power on.

Output Voltage (V DC): 24V DC
Output Power (Watt): 240W

Metal Casing Models SeriesLESA240D48

Output Voltage (V DC): 48V DC
Output Power (Watt): 240W

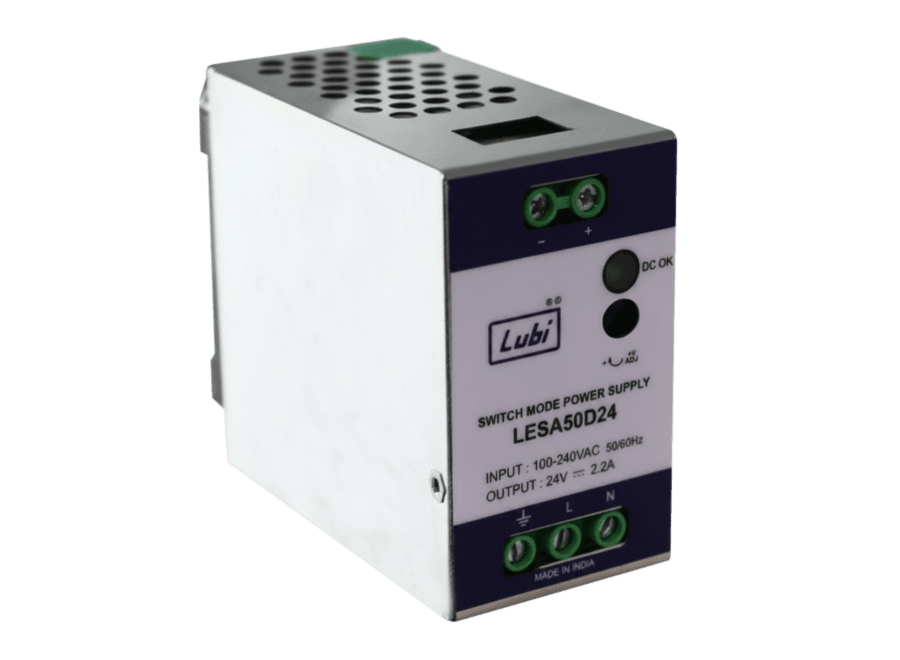

Metal Casing Models SeriesLESA50D12

Lubi offers a range of DIN-rail power supplies for different needs. The latest DIN-rail series has a slim form factor and is competitively priced for general industrial applications.

Output Voltage (V DC): 12V DC
Output Power (Watt): 50W

Metal Casing Models SeriesLESA50D24

Lubi offers a range of DIN-rail power supplies for different needs. The latest DIN-rail series has a slim form factor and is competitively priced for general industrial applications.

Output Voltage (V DC): 24V DC
Output Power (Watt): 50W

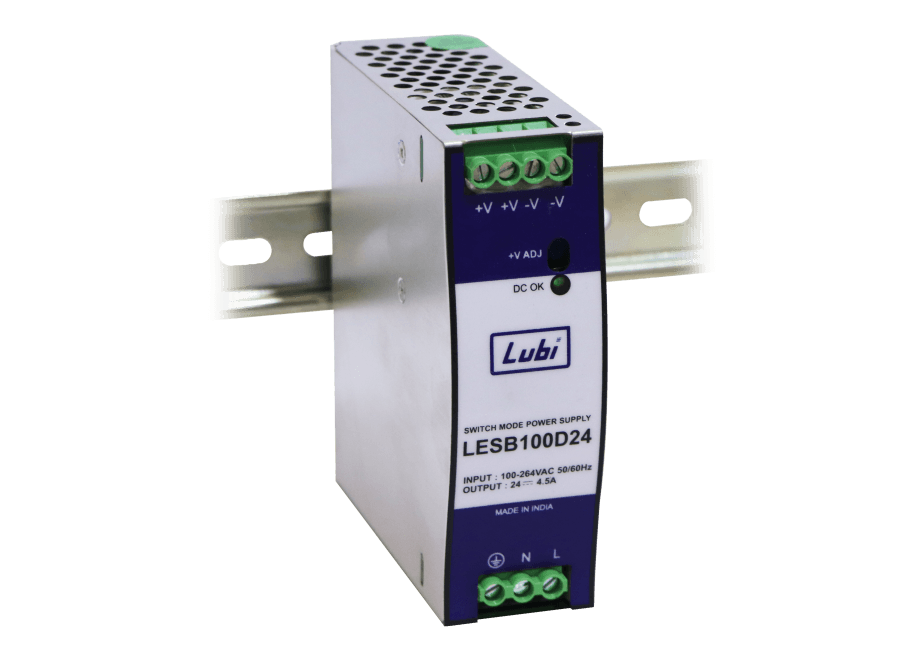

Metal Casing Models SeriesLESB100D24

Lubi offers a range of DIN-rail power supplies for different needs. The latest DIN-rail series has a slim form factor and is competitively priced for general industrial applications.

Output Power (Watt): 100W
Output Voltage (V DC): 24V DC

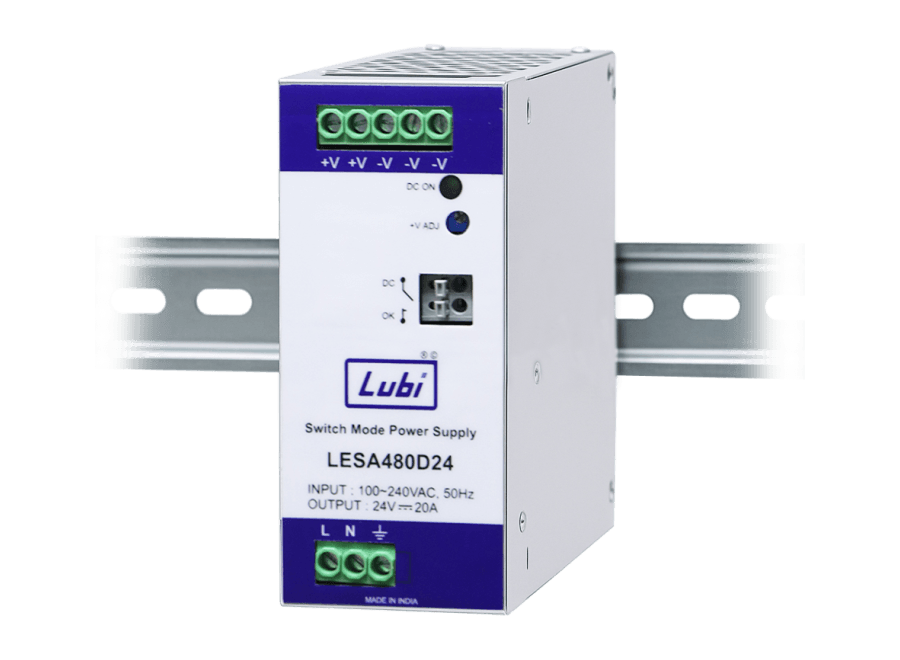

Metal Casing Models SeriesLESA480D24

Switched-mode power supply

Input voltage Range: 100 - 264VAC or 120 - 370VDC
Accepts AC or DC input (dual-use of the same terminal)
Operating ambient temperature range : -40°C to +70°C
LED indicator for power on
Over-temperature protection, output short circuit, over-current, and over-voltage protection
DC OK function
Active PFC, PF>0.99

Output Voltage (V DC): 24V DC
Output Power (Watt): 480W
