NA1-PK3 Area / Picking Sensor | Lubi Electronics

NA1-PK3 Area / Picking Sensor | Lubi Electronics

NA1-PK3 Models Available

2. NA1-PK5_Series.png

NA1-PK3 SeriesNA1-PK3-PN

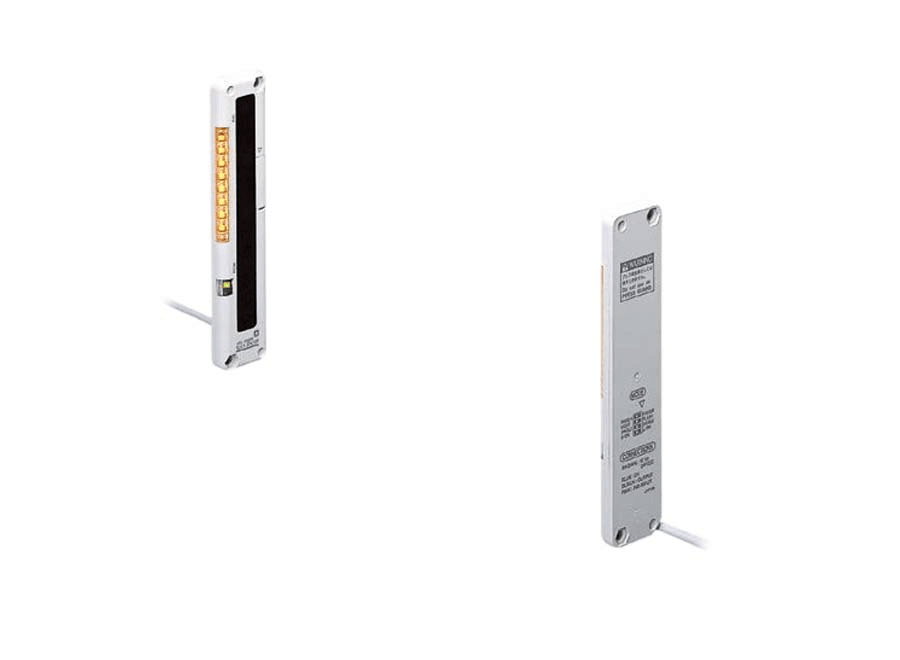

Ultra-slim Body Picking Sensor

Sensing Height : 49.2 mm
Sensing Range : 30 to 300 mm
Output : PNP
Fixed Cable, 2m

Sensing Height: 49.2 mm
Sensing Range: 30 to 300 mm
Output: PNP
Beam Pitch: 24.6 mm
Sensing Object Size: Phi 29mm
Connection Type: Fixed Cable\, 2m

2. NA1-PK5_Series.png

NA1-PK3 SeriesNA1-PK3-PN-C5

Ultra-slim Body Picking Sensor

Sensing Height : 49.2 mm
Sensing Range : 30 to 300 mm
Output : PNP
Fixed Cable, 5m

Sensing Height: 49.2 mm
Sensing Range: 30 to 300 mm
Output: PNP
Beam Pitch: 24.6 mm
Sensing Object Size: Phi 29mm
Connection Type: Fixed Cable\, 5m

2. NA1-PK5_Series.png

NA1-PK3 SeriesNA1-PK3-PN-J

Ultra-slim Body Picking Sensor

Sensing Height : 49.2 mm
Sensing Range : 30 to 300 mm
Output : PNP
0.3 m Cable with M12 Connector at the end

Sensing Height: 49.2 mm
Sensing Range: 30 to 300 mm
Output: PNP
Beam Pitch: 24.6 mm
Sensing Object Size: Phi 29mm
Connection Type: 0.3m Cable with M12 Connector at the end
