SA35 Models Available

SA 35.png

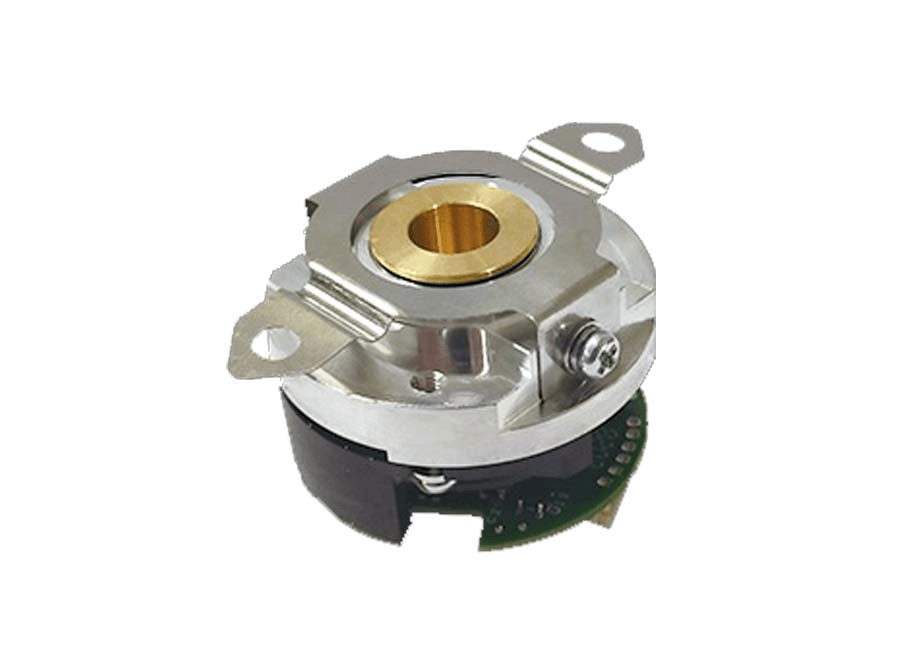

SA35 SeriesTS5643N110

Through hollow shaft type encoder with SSI protocol

Compact Size
High reliability
SSI communication with 5V supply
35mm Outer diameter
Maximum Rotational Speed: 6000 RPM

Encoder Type: Absolute
Shaft Type: Hollow shaft
Outer Diamater: 35 mm
Input Voltage: 5 VDC
PPR: 11-bit
Output Form: Serial Data

SA 35.png

SA35 SeriesTS5667N120

Through hollow shaft type encoder with SSI protocol

Compact Size
High reliability
SSI communication with 5V supply
35mm Outer diameter
Maximum Rotational Speed: 6000 RPM

Encoder Type: Absolute
Shaft Type: Hollow shaft
Outer Diamater: 35 mm
Input Voltage: 5 VDC
PPR: 17-bit
Output Form: Serial Data

SA 35.png

SA35 SeriesTS5702N40

Through hollow shaft type encoder with SSI protocol

Compact Size
High reliability
SSI communication with 5V supply
35mm Outer diameter
Maximum Rotational Speed: 6000 RPM

Encoder Type: Absolute
Shaft Type: Hollow shaft
Outer Diamater: 35 mm
Input Voltage: 5 VDC
PPR: 23-bit
Output Form: Serial Data

SA 35.png

SA35 SeriesTS5722N10

Through hollow shaft type encoder with SSI protocol

Compact Size
High reliability
SSI communication with 5V supply
35mm Outer diameter
Maximum Rotational Speed: 6000 RPM

Encoder Type: Absolute
Shaft Type: Hollow shaft
Outer Diamater: 35 mm
Input Voltage: 5 VDC
PPR: 25-bit
Output Form: Serial Data
