Compact Fans AC
12A115HSAC-L30P2
₹1,043

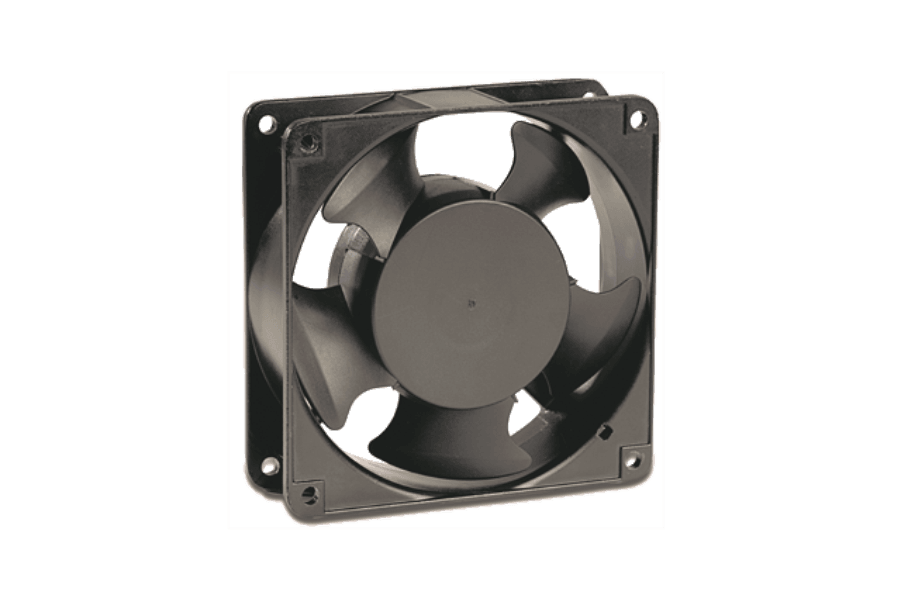

4 Inch, 120mm 115V AC Cooling Fan with Sleeve Bearing and Lead Wire Connection.
Key Features:
- Size: 120 x 120 x 38 mm
- Operating Voltage: 115V AC
- Bearing: Sleeve Bearing
- Connection Type: Lead Wire Type
The Hicool 230V AC Compact Fan Series (Sleeve Bearing) is designed to deliver superior thermal management and continuous cooling performance in demanding industrial environments. Engineered for efficiency and long-term reliability, these fans provide an optimal balance between airflow volume and low operational noise.
Key Features & Design:
- Durable Construction: Built with a high-grade die-cast aluminum alloy frame that offers exceptional structural strength and excellent heat dissipation.
- Flame Retardant Impeller: Equipped with high-performance thermoplastic PBT blades that meet UL 94V-0 standards for maximum safety and fire resistance.
- Reliable Sleeve Bearing System: Designed for smooth, low-vibration, and quiet operation, making it ideal for standard-duty control cabinet cooling.
- Motor Protection: Features built-in impedance and thermal protection to prevent overheating, coil damage, and operational failures during voltage fluctuations.
- Versatile Mounting & Termination: Available in multiple frame sizes (120mm, 172mm, and 220mm) and casing shapes (Square and Oval/Round) with options for standard lead wire connections or fast-on terminal plug connections.
| Model | Bearing | Voltage (VAC) | Frequency (Hz) | Current (mA) | Speed (RPM) | Watt (W) | Air Flow (CFM) | Static Pressure (mm H2O) | Noise (dBA) |
| 12A115HSAC-L30P2 | Sleeve | 115 | 50/60 | 180/160 | 2400/2600 | 16/15 | 85/92 | 7.2/8.1 | 40/43 |
| 12A115HBAC-L30P0 | Ball | 115 | 50/60 | 180/160 | 2500/2700 | 16/15 | 88/95 | 7.5/8.4 | 41/44 |
| 12A115HBAC-T | Ball | 115 | 50/60 | 180/160 | 2500/2700 | 16/15 | 88/95 | 7.5/8.4 | 41/44 |
| 17A115HSAC-S30P2 | Sleeve | 115 | 50/60 | 500/480 | 2600/2750 | 38/37 | 190/235 | 16/21 | 52/55 |
