AH Expansion

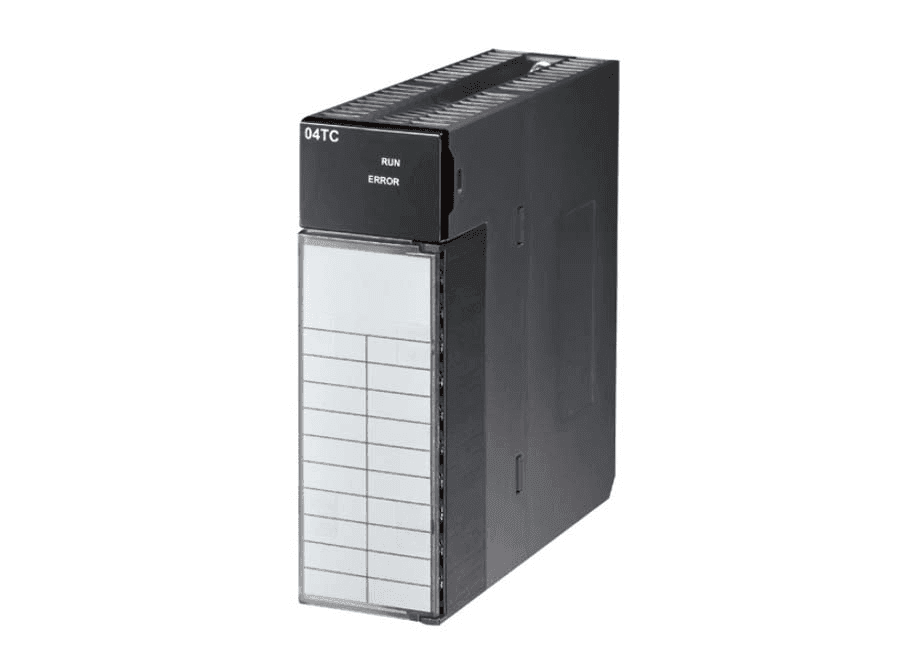

AH04TC-5A
Temperature Measurement Module
- 04 CH TC Inputs
- J,K,R,S,T,E,N and -150 to 150mV
- 16-bit Resolution
- 150ms/CH Conversion Time
- Hot-swapping function
- Isolated signal design
- Diagnosis function
- Module status LED indicator
AH Series CPU supports digital input/output modules, analog input/output modules, temperature measurement modules, network modules, motion control modules, and remote I/O modules. AH04TC-5A is temperature measurement modules. They convert temperatures received from thermocouples (type J, type K, type R, type S, type T,
type E, type N and +-150 mV) into digital signals. Users can select the degree Celsius or the degree Fahrenheit as a unit of measurement for temperature. 04 CH, 16-bit Resolution,150ms/CH Conversion Time
| Type | Expansion Module | Input/Output | Special | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | 16-bit |
