AH Expansion

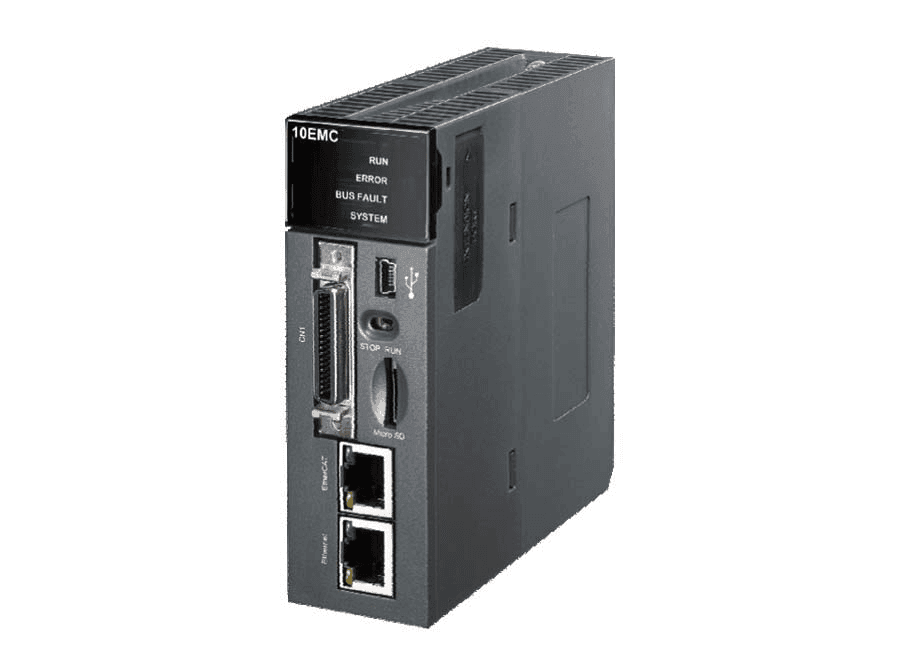

AH10EMC-5A
EtherCAT communication motion control (100 Mbps) 16 Axis Module
- Supports 2 ~ 6-axis linear interpolation, 2-axis arc interpolation and 3-axis helical interpolation
- Built in Ethernet communication port
- Supports Micro SD card
- Supports EtherNet/IP
- Adapter mode
- Supports I/O connection & explicit message
- Connections: TCP = 16 ; CIP = 32
- RPI: 2 ~ 1,000 ms
- PPS: 3,200
- 250 words / connection
- CPU execution speed: LD instruction @ 0.08 μs
- AH Series CPU supports digital input/output modules, analog input/output modules, temperature measurement modules, network modules, motion control modules, and remote I/O modules. AH08EMC-5A is Motion Controller Module with Ethercat Communication and supports upto 16 Axis
| Type | Motion Module | Input/Output | N.A. | Ethernet | YES |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | N.A. |
