AH Expansion

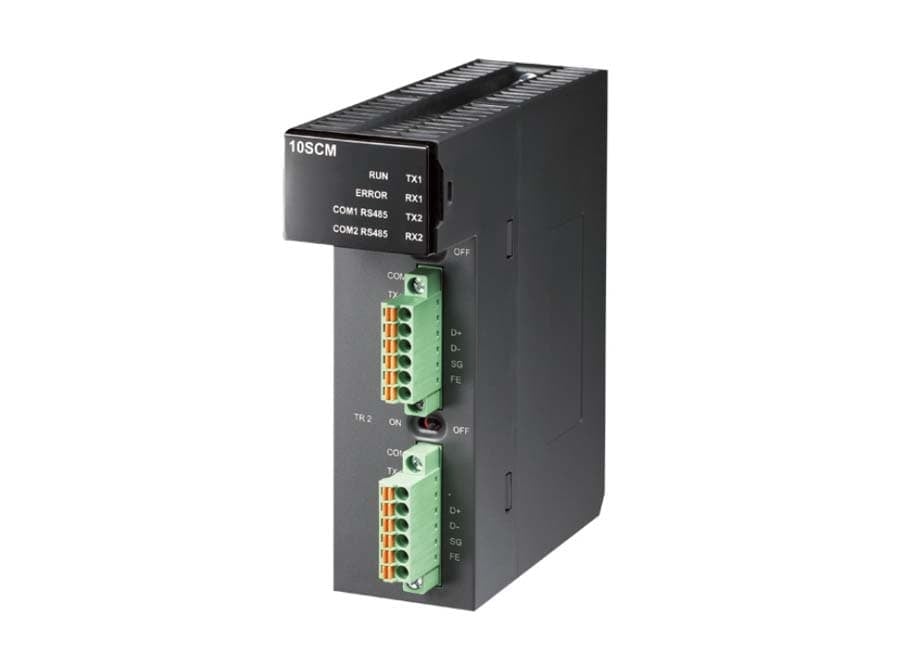

AH10SCM-5A
Serial communication module (Master / Slave)
- Full isolation design in power & signal circuits
- Built-in RS-422 / RS-485 with communication port × 2 (multiple modes, 460.8 Kbps)
- Supports PLC Link function
- Supports user defined communication format (UD Link)
- Modbus RTU / ASCII function available
- Supports automatic data exchange function
- Supports BACnet Slave function
- AH Series CPU supports digital input/output modules, analog input/output modules, temperature measurement modules, network modules, motion control modules, and remote I/O modules. AH10SCM-5A is a serial communication module. It supports the Modbus UD Link (user-defined format). It can be used as a RS-485/RS-422/RS-232 communication port through which a program is downloaded to or uploaded from a CPU module
| Type | Communication Module | Input/Output | N.A. | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | N.A. |
