AH Expansion

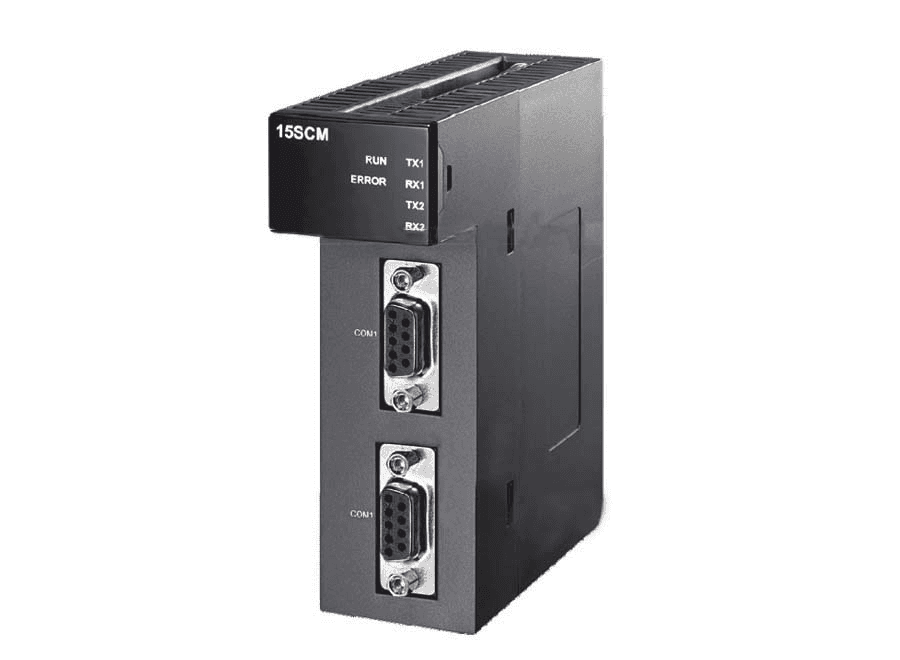

AH15SCM-5A
Serial communication module (Master / Slave)
- Full isolation design in power & signal circuits
- Built-in RS-232 with communication port × 2 (multiple modes, 460.8 Kbps)
- Supports PLC Link function
- Supports user defined communication format (UD Link)
- Modbus RTU / ASCII function available
- Supports automatic data exchange function
- Supports BACnet Slave function
- AH Series CPU supports digital input/output modules, analog input/output modules, temperature measurement modules, network modules, motion control modules, and remote I/O modules. AH15SCM-5A is a serial communication module. It can function as a BACnet MS/TP slave. A BACnet MS/TP master can read an analog value/binary value from AH15SCM-5A, and can write an analog value/binary value into AH15SCM-5A.
| Type | Communication Module | Input/Output | N.A. | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | N.A. |
