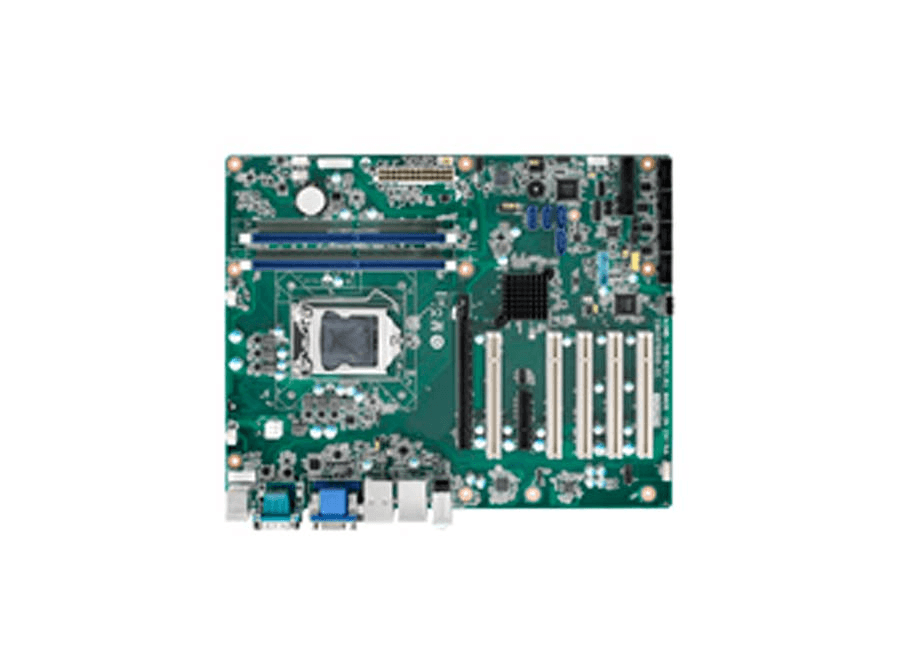

AIMB-706

Intel® 8th/9th generation Core™ i7/i5/i3/Pentium®/Celeron® processor withH310 chipset

Dual-channel (Non-ECC) DDR4 2400/2666 up to 64 GB
Support VGA and DVI display
SATA 3.0, USB 3.1, dual GbEs
5 RS-232 and 1 RS-232/422/485 serial ports

With ATX form factor, Advantech AIMB Series are well-accepted motherboards offering the most expansion capability for industrial applications. AIMB-706 motherboard is LGA1151 8th / 9th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® ATX with DVI/VGA, DDR4, SATA 3.0, USB 3.1 & 6 COMs

Form Factor	ATX Motherboard	Processor	i7-8700, i7-8700T, i5-8500, i5-8500T, i3-8100, i3-8100T, G5400, G5400T, G4900, G4900T	RAID Support	No
RAM	Max Capacity 32 GB (16 GB per DIMM)	SATA	Max Data Transfer Rate 600 MB/s Channel 4	Expansion Slot	PCI 32-bit/33 MHz, 5 slots PCIe x4 (Gen 2) 2 GB/s per direction, 1 slot PCIe x16 (Gen 3) 16 GB/s per direction, 1 slot
I/O	VGA 1 (Resolution up to 1920 x 1200 @ 60 Hz) DVI 1 for G2 version (Resolution up to 1920 x 1200 @ 60 Hz) Ethernet 2 for G2 version; 1 for VG version USB 4 (2 x USB 3.1 Gen 1, 2 x USB 2.0) Audio 2 (Line-out, Mic-in), Serial 2 (RS-232) PS/2 2 (1 x keyboard and 1 x mouse)	Network	Interface 10/100/1000 Mbps Controller GbE LAN1: Intel I219-V, GbE LAN2: Intel I211-AT Connector 2 x RJ-45	Display Port	VGA 1 (Resolution up to 1920 x 1200 @ 60 Hz) DVI 1 for G2 version (Resolution up to 1920 x 1200 @ 60 Hz)
Max Resolution	VGA 1 (Resolution up to 1920 x 1200 @ 60 Hz) DVI 1 for G2 version (Resolution up to 1920 x 1200 @ 60 Hz)	Graphics	Chipset integrated Intel HD Graphics	Watchdog Timer	Programmable 1 ~ 255 sec
