Unmanaged Ethernet Switches

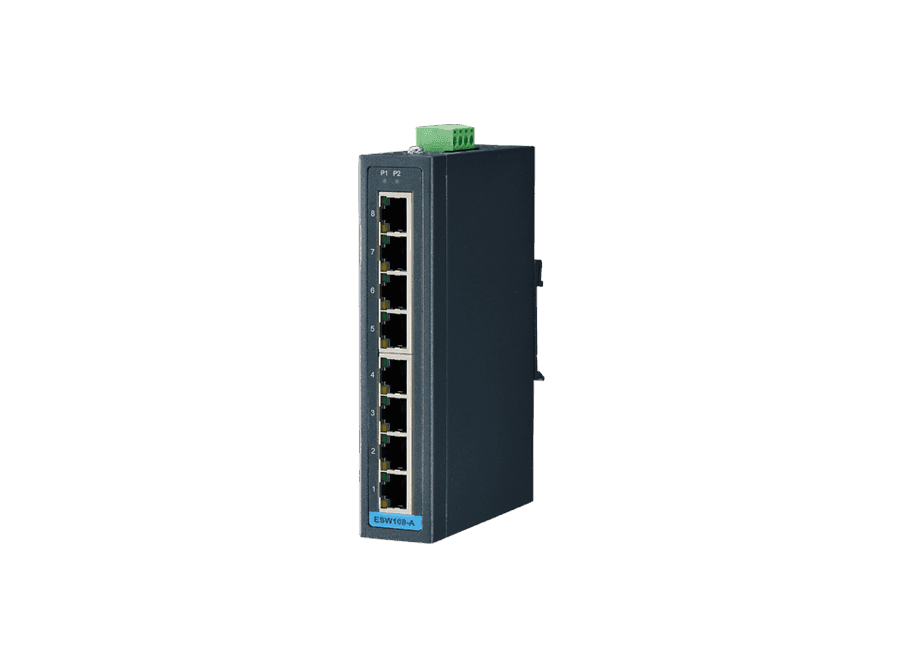

BB-ESW108-A
8FE Slim-type Unmanaged Industrial Ethernet Switch with
- 8 x fast Ethernet ports with auto MDI/MDI-X
- Supports 10/100 Mbps auto negotiation
- Compact size with DIN rail and wall mount
- Supports redundant 12~48 VDC or 10~24 VAC power input Wide operating temperature range of -40 ~ 75°C
- C1D2 for hazardous locations
- The ESW108-A provides a C1D2 compliant fast Ethernet solution and comes with a compact metal enclosure, making it suitable for installation in narrow areas. The IP40-rated enclosure ensures protection against dusty environment.
| Type | Unmanaged Ethernet Switches |
LAN | 8 X 10/100BASE-TX | Optical Fiber | NA |
| Connectors | 8 x RJ45 4-pin removableterminal (power) |
Transmission Distance |
100 m | Transmission Speed | 100Mbps |
| Standard | IEEE 802.3, 802.3u, 802.3x | LED Indicators | PWR1, PWR2 10/100TX: link/activity, duplex |
Protocol Support | NA |
| Switch Properties | NA | Power Supply | 12~48 V DC or 10~24 VAC, redundant dual inputs |
Certification | Safety: EN 60950, UL60950, Class 1 Division 2 EMI: CE, FCC Class A EMS EN 61000-4-2 (Level 3) |
