CX-400
CX-441

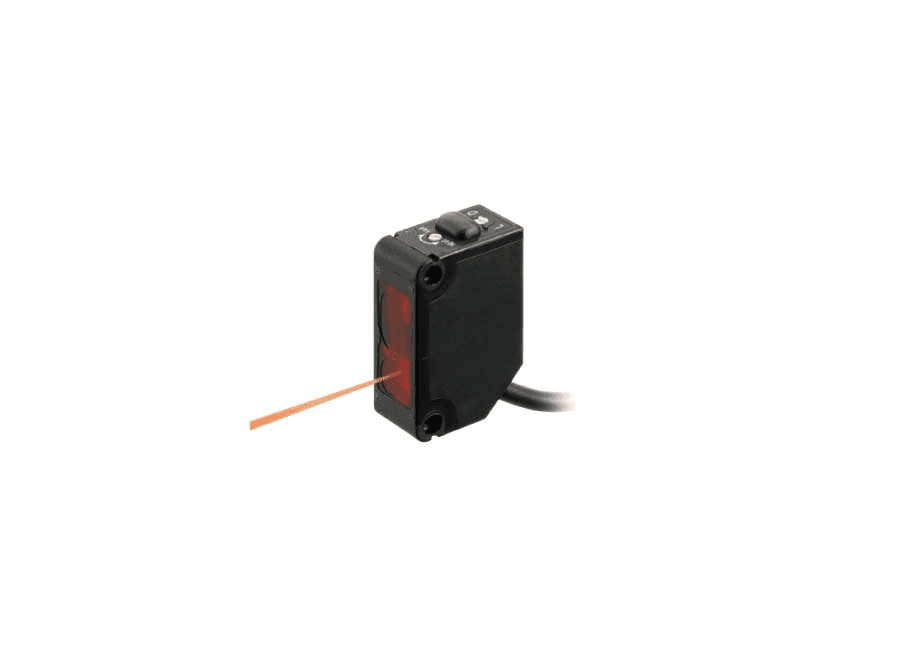

Compact Photoelectric Sensor
- Diffuse BGS & FGS Function Type
- Sensing Range : 2 to 50mm,
- Output : NPN o/p,
- Emitting Element : Red LED
- Fixed Cable, 2m
- The various lineup covers through the inclusion of a newly developed custom integrated circuit.The CX-400 series achieves reductions in power consumption of up to 60%, averaging 44% reduction when upgrading due to its unique design. These sensors reduce carbon emissions and contribute to environmental friendliness.The lens material for the thru-beam type, retroreflective type (excluding the CX-48?) and the diffuse reflective type are made of a strong acrylic that resists the harmful effects of coolants. These sensors can be used with confidence even around metal processing machinery that disperses oil mists. The protection mechanism also conforms to IP67 (IEC).
| Type | Diffuse | Shape | Rectangular | Sensing Range | 2 to 50 mm |
| Repeatability | 1 mm | Output | NPN | Output Operation | L-ON / D-ON Selectable |
| Input supply | 12 to 24 VDC | Emitting Element | Red LED | Connection Type | Fixed Cable, 2m |
| Sensing Object Size | - | Timer Function | - | Response Time | < 1 ms |
| Enclosure | PBT | Protection | IP67 (IEC) | Sensitivity adjuster | 5-turn mechanical adjuster |
| Particular Characteristics | BGS & FGS Function Type |
