DVP-EH3 Expansion

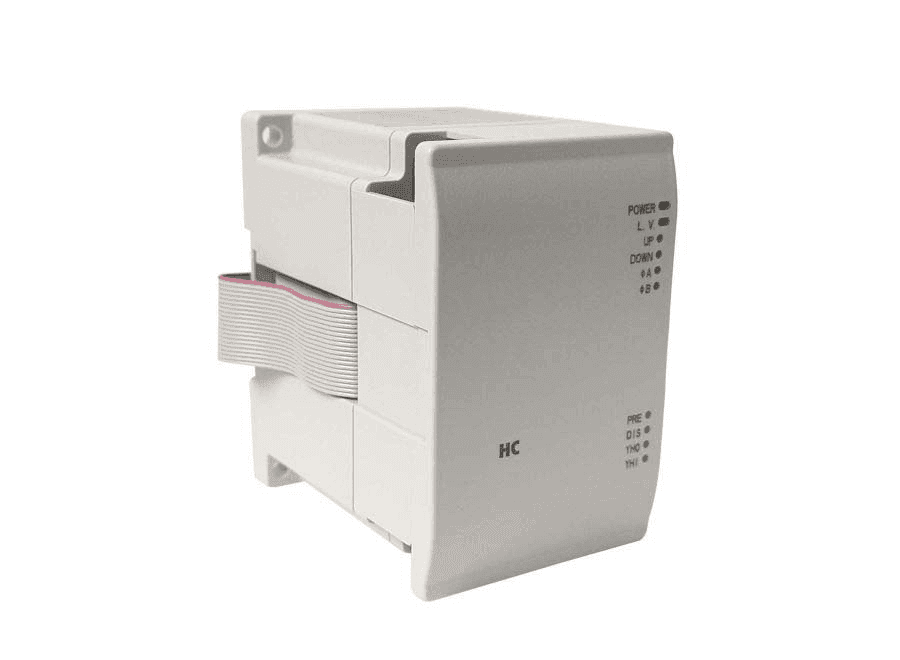

DVP01HC-H2
- High Speed Couner
- Single Channel,200KHz
- DVP01HC-H2 hardware high-speed counting input module is able to accept external counting pulse signals of 200KHz. DVP-EH2 series MPU writes or reads the data in DVP01HC-H2 through FROM/TO instructions. There are 33 16-bit control registers (CR) in VP01HC-H2. The 32-bit parameters are composed of 2 continuous control registers. The module can execute itself after the control registers in the module are set up.
| Type | Special | Input/Output | Special | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | N.A. |
