DVP-Slim Expansion

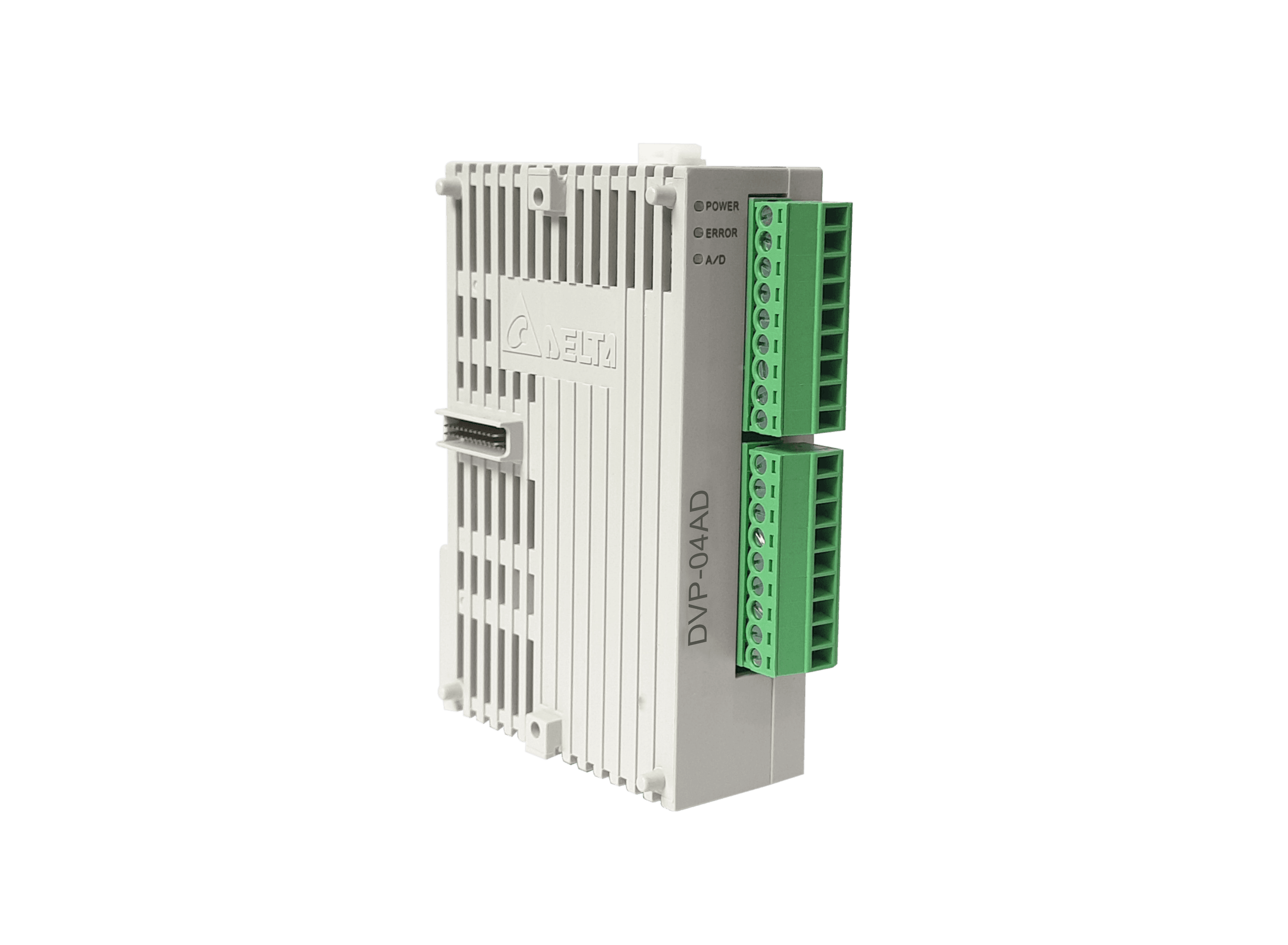

DVP04AD-S2
Analog I/O Module
- 4 points of analog input voltage (-10 V ~ +10 V) / current (-20 mA ~ +20 mA)
- Input resolution: 14-bit
- Built-in RS-485 interface
- Differential input
- The analog input module DVP04AD-S2 receives external 4-point analog signal input (voltage or current) and converts it into 14-bit digital signals. A DVP series slim type PLC can read data from DVP04AD-S/DVP04AD-S2 or write data to DVP04AD-S/DVP04AD-S2 by means of the instruction FROM/TO. There are 49 CRs (control registers) in the module, and each register has 16 bits.
| Type | Expansion Module | Input/Output | Separate DI/DO | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | 16-Bit |
