DVP-Slim Expansion

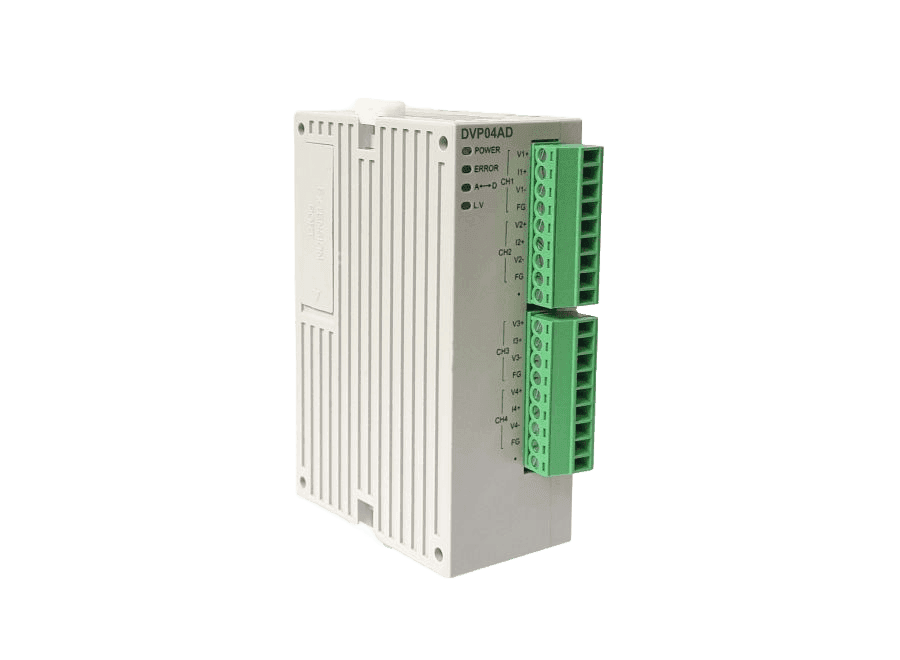

DVP04AD-SL
High-Speed Analog I/O Module (Left-side)
- 4 groups of analog input
- Signal range: 1 ~ 5 V, 0 ~ 5 V, -5 ~ 5 V, 0 ~ 10 V, -10 ~ 10 V, 4 ~ 20 mA, 0 ~ 20 mA, -20 ~ 20 mA
- Resolution: 16-bit
- Single channel On / Off setup enhances entire conversion efficiency
- Conversion time: 250 μs / point
- Off-line alarm (1 ~ 5 V, 4 ~ 20 mA
- The analog input module of the DVP04AD-SL series can read/write the data of analog input module by using instructions FROM/TO via the DVP SV/EH2-L MPU program. The analog input module receives 16bit digital data of 4 groups from PLC MPU and converts it into 4 points analog input signal either in voltage or in current. Users can select input from a voltage or current via wiring. The voltage input range is -10V~10VDC (resolution is 312.5μV). Current input range is -20mA ~ 20mA (resolution is 625nA).
| Type | Expansion Module | Input/Output | Separate AI/AO | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | N.A. |
