DVP-Slim Expansion

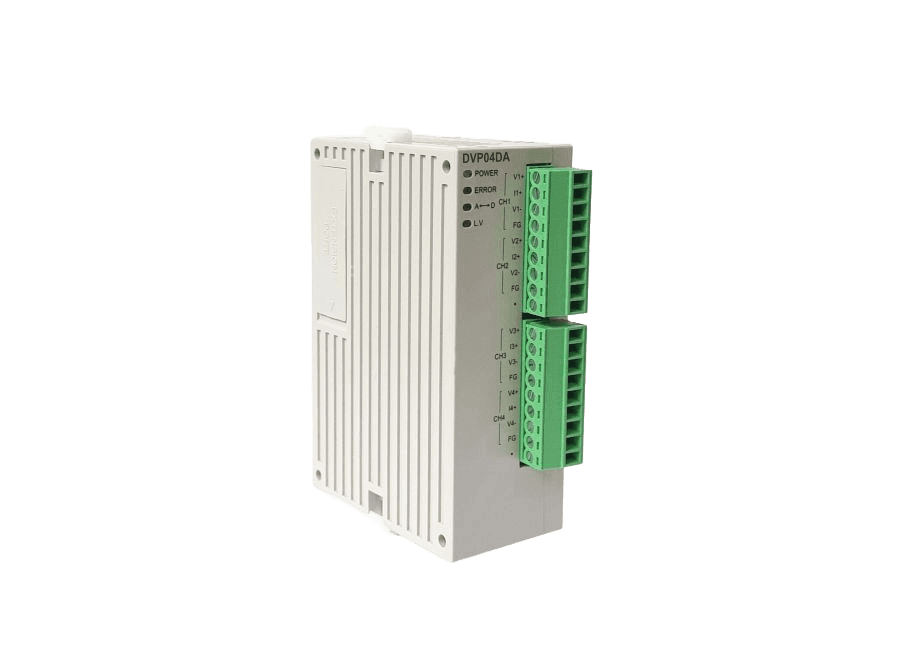

DVP04DA-SL
High-Speed Analog I/O Module (Left-side)
- 4 groups of analog output *1
- Signal range: 0 ~ 10 V, -10 ~ 10 V, 4 ~ 20 mA, 0 ~ 20 mA
- Resolution: 16-bit
- Offers single channel On / Off setup
- Conversion time: 250 μs / point
- The analog output module of the DVP04DA-SL series can read/write the data of the analog output module by using instructions FROM/TO via the DVP SV/EH2-L MPU program. The analog output module receives 16bit digital data of 4 groups from PLC MPU and converts it into 4 points analog output signal either in voltage or in current. Users can select output from voltage or current via wiring. The voltage output range is -10V~10VDC (resolution is 312.5μV). Current output range is 0mA ~ 20mA (resolution is 625nA).
| Type | Expansion Module | Input/Output | Separate AI/AO | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | N.A. |
