DVP-ES2 Expansion

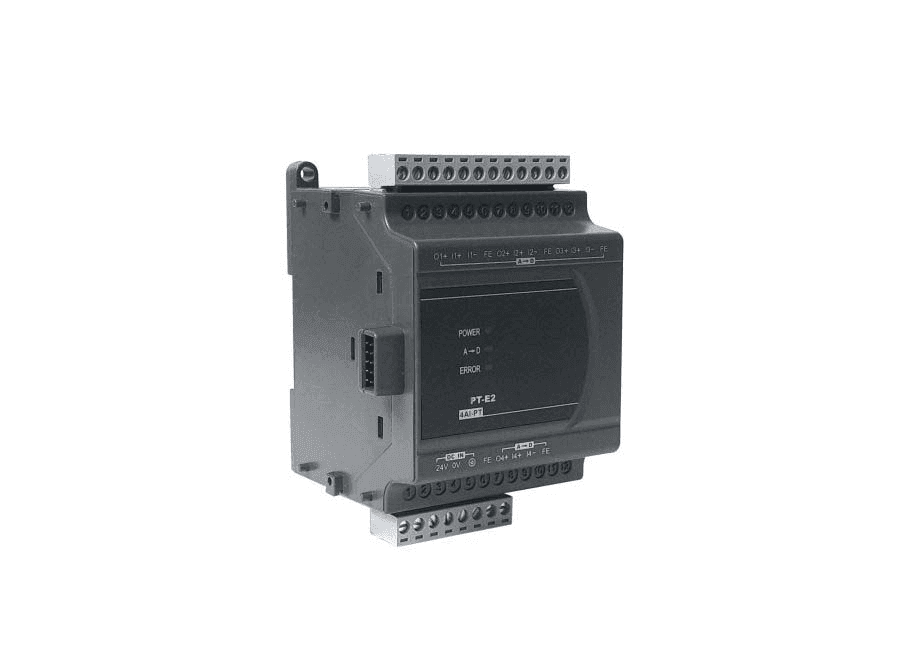

DVP04PT-E2
Temperature Measurement Module
- 4 points of platinum RTD (Pt100, Pt1000, Ni100, Ni1000) sensor input / 0 ~ 300Ω resistance input *1
- Resolution: 16-bit
- With PID temperature control
- DVP04/06PT-E2 temperature measurement module receives 4/6 points of thermal resistance temperature sensors and converts them into 16-bit digital signals. Users can select the temperature to be displayed in Celsius (°C) or Fahrenheit (°F). Resolution of temperature in Celsius: 0.1°C and in Fahrenheit: 0.18°F. In addition, you can access the data in the module by applying FROM/TO instructions or read the average value of channels directly by using MOV instruction.
| Type | Expansion Module | Input/Output | Special | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | 16-bit |
