DVP-EH3 Expansion

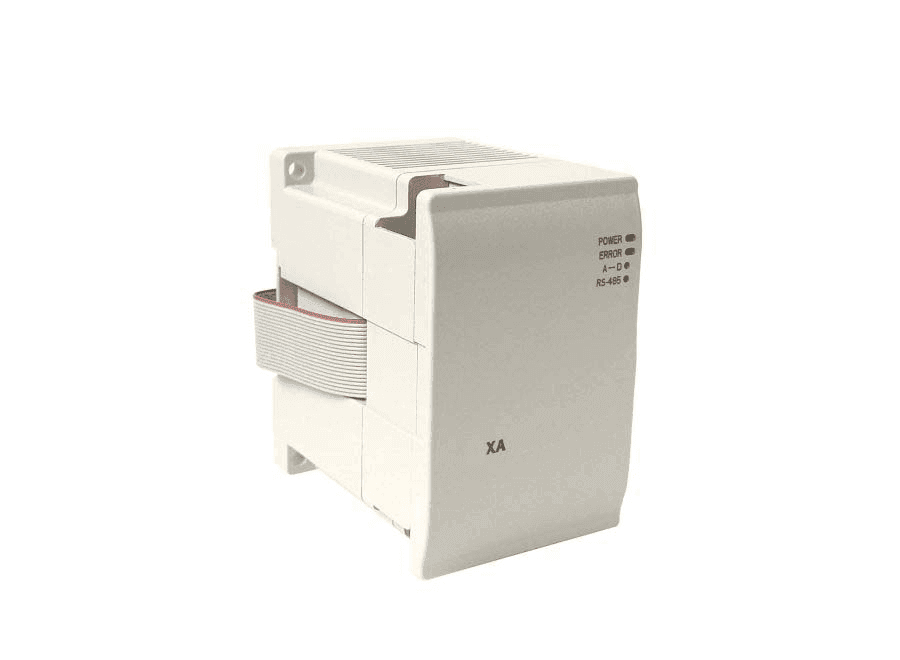

DVP06XA-H2
Analog Module
- 4 points of analog voltage (-10 V ~ +10 V) / current (-20 mA ~ +20 mA) input
- 2 points of analog voltage (0 V ~ +10 V) / current (0 mA ~ +20 mA) output
- Resolution: 12-bit
- Built-in RS-485 interface
- DVP06XA-H2 is able to receive 4 points of analog input signals (voltage or current) and convert them into 12-bit digital signals. DVP06XA-H2 receives 2 groups of 12-bit digital data from PLC MPU and converts them into 2 points of analog signal for output (in voltage/current).c
| Type | Expansion Module | Input/Output | Mix AI/AO | Ethernet | NO |
| Output Type | N.A. | HSC | N.A. | PTO | N.A. |
| Resolution | 12-bit |
