The EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance, IEEE 802.3az Energy Efficient Ethernet (EEE), Supports redundant 12~48V DC power input and P-Fail relay, Loop detection.

Type	Unmanaged Ethernet Switches	LAN	6 X 10/100Base-T(X),	Optical Fiber	Multi-mode Fiber: Up to 2 km (EKI-5524MM Series)
Connectors	4 x RJ45 ports 2 x SC/ST type fiber optic connectors 6-pin screwTerminal Block (including relay)	Transmission Distance	Ethernet: Up to 100 m Multi-mode Fiber: Up to 2 km (EKI-5524MM Series) Single-mode Fiber: Up to 30 km (EKI-5524SS Series)	Transmission Speed	1000 Mbps
Standard	IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab	LED Indicators	P1,P2, P-Fail, Loop detection 10/100T(X): Link/Activity, Speed	Protocol Support	NA
Switch Properties	NA	Power Supply	12~48 VDC (8.4~52.8 VDC), redundant dual inputs	Certification	Safety : IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX EMI : FCC Part 15 Subpart B Class A, EN 55011/55022 Class A EMS : EN61000-4-2 (ESD) Level 3

SPG.pdf

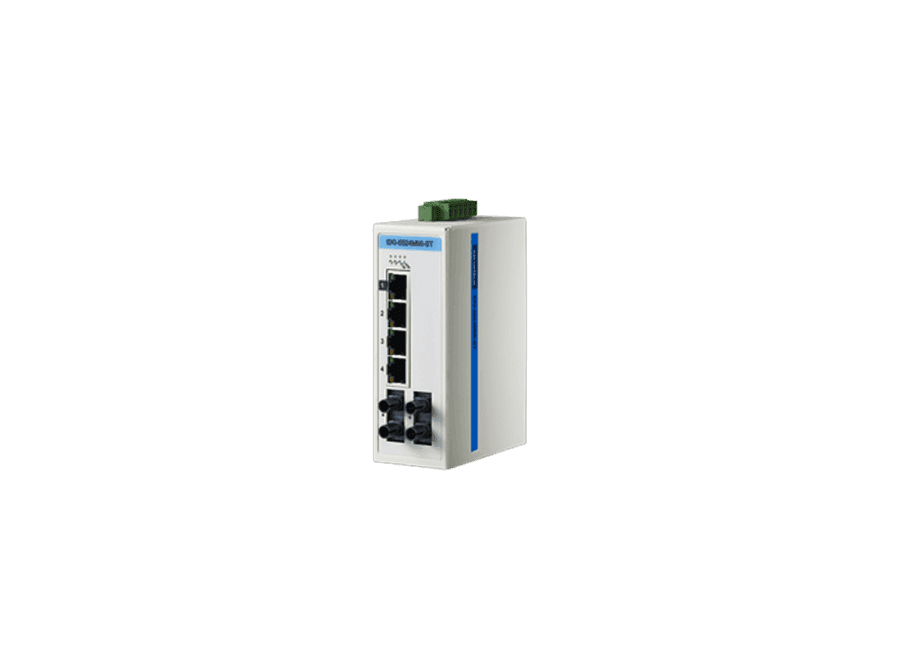

EKI-5524MMI-ST
