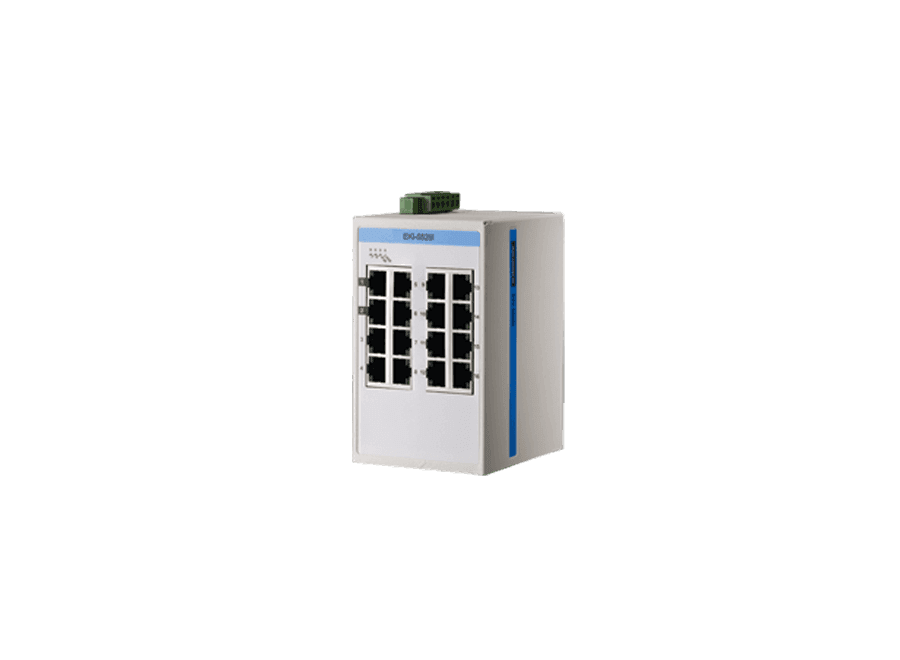

The EKI-5526/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5526/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance, IEEE 802.3az Energy Efficient Ethernet (EEE), Supports redundant 12~48V DC power input and P-Fail relay, Loop detection

Type	Unmanaged Ethernet Switches	LAN	16 X 10/100Base-T(X)	Optical Fiber	NA
Connectors	16 x RJ45 6-pin removable screw terminal (power & relay)	Transmission Distance	100 m	Transmission Speed	100 Mbps
Standard	IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az	LED Indicators	P1,P2, P-Fail, Loop detection 10/100T(X): Link/Activity, Speed	Protocol Support	NA
Switch Properties	NA	Power Supply	12~48 VDC (8.4~52.8 VDC), redundant dual inputs	Certification	Safety :IEC/EN 60950-1, UL508, Class 1 Division 2, IECEx,ATEX EMC: CE, FCC EMI :EN 55011/55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A EMS :EN 61000-4-2 (Level 3)

SPG.pdf

EKI-5526I
