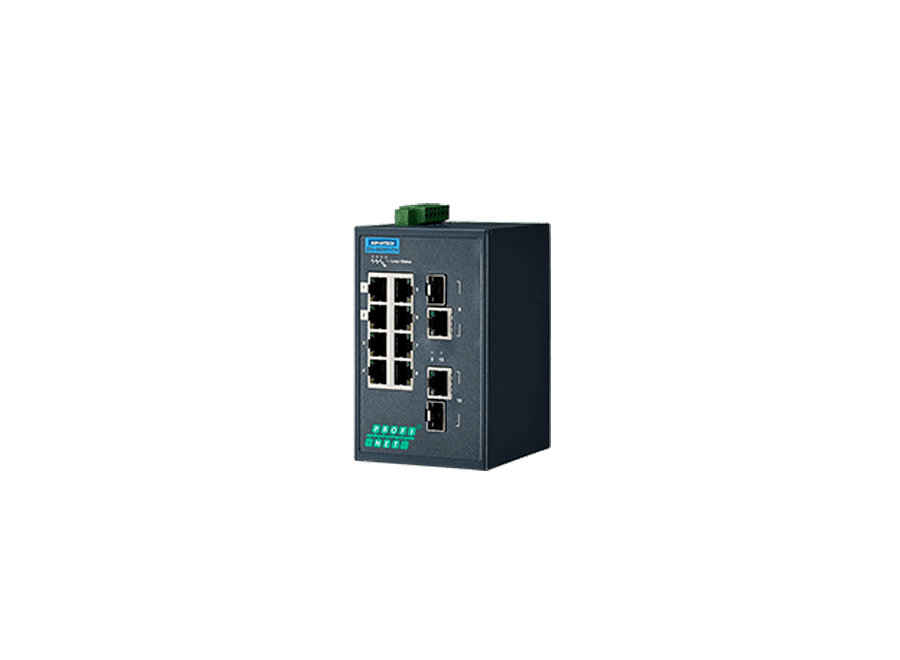

EKI-5629CI-PN

8FE+2G Combo Managed Ethernet Switch support PROFINET

EKI-5629CI-PN are new generation of entry-level managed switch products. They support media redundancy protocols and meet the PROFINET real time standard. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.

Type	Managed Ethernet Switches	LAN	10 X 10/100Base-T (X)	Optical Fiber	NA
Connectors	6-pin screw Terminal Block (including relay)	Transmission Distance	100 m	Transmission Speed	1000Mbps
Standard	IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X,802.3AD,802.3az	LED Indicators	PWR1, PWR2,P-Fail, Loop/Status	Protocol Support	IPV6, LLDP, PROFINET, Media Redundancy Protocol
Switch Properties	NA	Power Supply	12 ~ 48 VDC (8.4~52.8 VDC), redundant dual power input	Certification	EMI : CE, FCC Class A Safety : UL508, Class 1 Division 2, ATEX EMC : EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8
