Managed Ethernet Switches

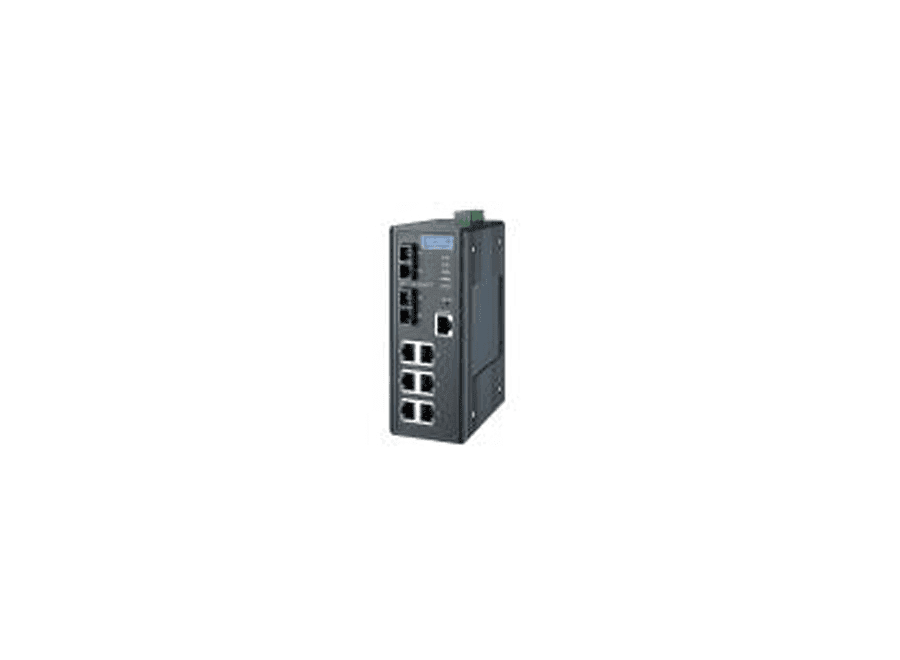

EKI-7712G-4FMPI
8GE PoE and 4G SFP Managed Ethernet Switch
- Support 2 x IEEE 802.3bt class 8 90W PoE ports, 6 x IEEE 802.3at/af PoE ports and 4 x SFP ports
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- IXM function enables fast deployment
- The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x 802.3 af/at PoE Gigabit ports, 2 x 802.3 bt PoE Gigabit ports, and 4 x SFP ports, the EKI-7712G-4FMPI provides multiple usage for different scenario. The EKI-7712G-4FMPI is embedded with Advantech’s IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. The series are also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of, Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D), SFP socket for easy and flexible fiber expansion, NEMA TS2 for traffic control
| Type | Managed Ethernet Switches | LAN | 12 X 10/100/1000BASE-T/TX | Optical Fiber | NA |
| Connectors | 6-pin screw Terminal Block (including relay) |
Transmission Distance |
NA | Transmission Speed | NA |
| Standard | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)/FX IEEE 802.3ab 1000BaseT(X) IEEE 802.3z for 1000 BaseSX/LX/LHX/ZX IEEE 802.3x for Flow Control |
LED Indicators | PWR1, PWR2, SYS,Alarm and R.M |
Protocol Support | NA |
| Switch Properties | NA | Power Supply | 12W @ 55V DC (System) | Certification | Safety : UL 62368-1 EMI : CE, CISPR 32, FCC Part 15B Class A EMS :EN 61000-4-2 |
