EX-31B-C5

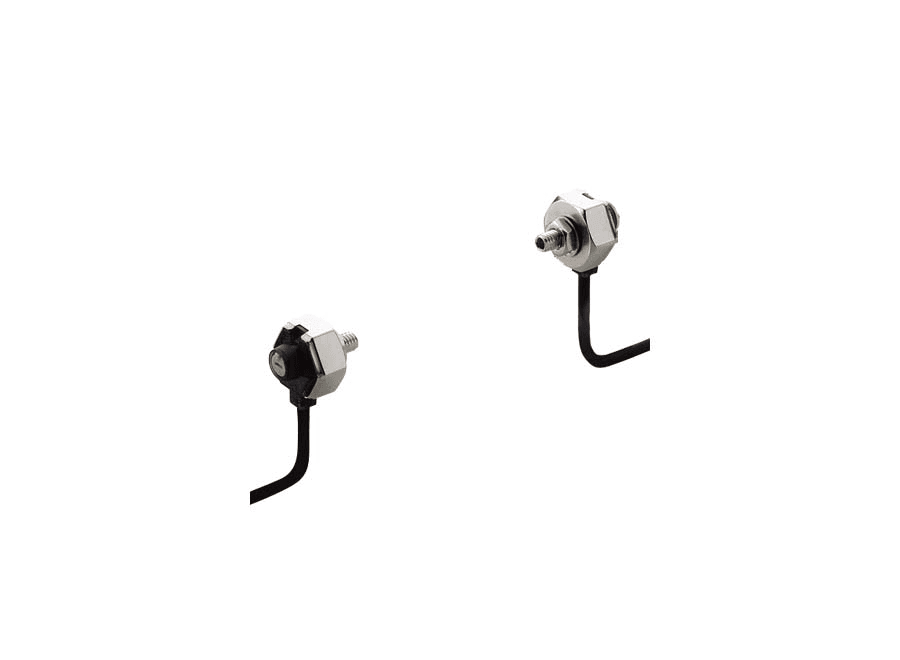

Threaded Miniature Photoelectric Sensor

The next-generation new form series, A new alternative to fiber sensors.All you need to do is to make a ø4 mm ø0.157 in hole where you would like to stop or check the object (ø6 mm ø0.236 in hole for reflective type). Furthermore, the center of the sensing axis is the same as the center of the mounting hole, which makes it much easier to set the sensing position.The EX-30 series solves all of the difficulties associated with fiber sensors, such as:
Difficulty finding a suitable place for the amplifier
Fragility of the fiber
Extra space needed because of difficulty in bending the fiber
The nuisance of having to use a protective tube to prevent fiber breakage

Type	Thru-beam	Shape	M4	Sensing Range	500 mm
Repeatability	0.05 mm	Output	NPN	Output Operation	D-ON
Input supply	12 to 24VDC	Emitting Element	Red LED	Connection Type	Fixed Cable, 5m
Sensing Object Size	ø2 mm	Timer Function	-	Response Time	< 0.5 ms
Enclosure	Die-cast Zinc (Nickel Plated)	Protection	IP67 (IEC)	Sensitivity adjuster	No
Particular Characteristics	-
