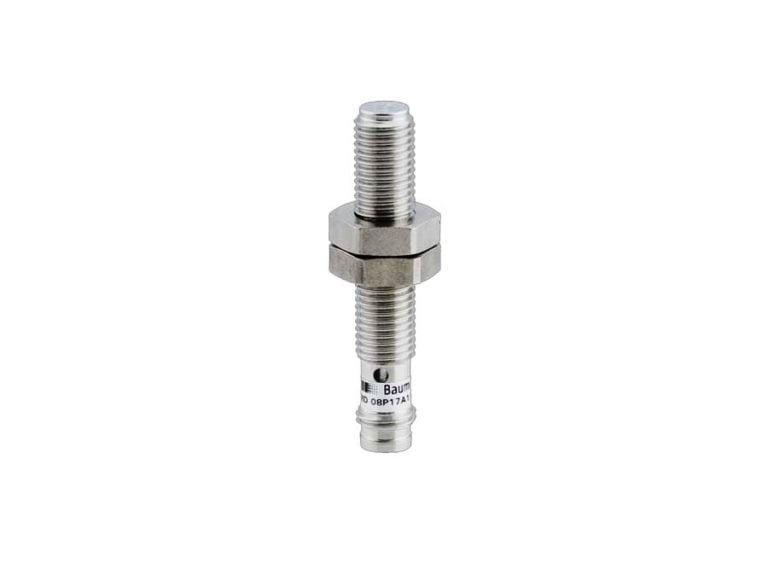

IFRD 08N17A1/S35L

Inductive Proximity Switch - Full Metal Housing

IFRD Proximity sensors comes with full metal housing which makes sensor more durable and rugged to mount on machine.The Proximity swithces due to their reliability and efficiency, used for sensing any metal part, wheather moving or stationary within a few distance.Non contact sensing enables proximity swithces to operate without any wear with very high repeat accuracy and switching frequency.In addition, Mounting design of switches make reliable protection against vibration,free from dust and moisture
Full metal housings
Sturdy sensors for demanding environments
Stainless steel 1.4404 (V4A)
IP 68/67 (sensing face/sensor)

Type	Cylindrical Threaded - Full Metal Housing	Mounting Type	Quasi-Flush	Dimension	M8
Sensing Range	2 mm	Repeat Accuracy	-	Output	NPN - NO
Input supply	10 to 30 VDC	Connection Type	M8 Connector Type	Max. Response Frequency	< 150 Hz
Housing Material	Stainless Steel 1.4404 (V4A)	Short-circuit protection	Yes	Protection	IP 68/67 (sensing face/sensor)

IFRD_08N17A1_S35L_web_EN.pdf
