In-Sight 9000
IS9902L-373-50

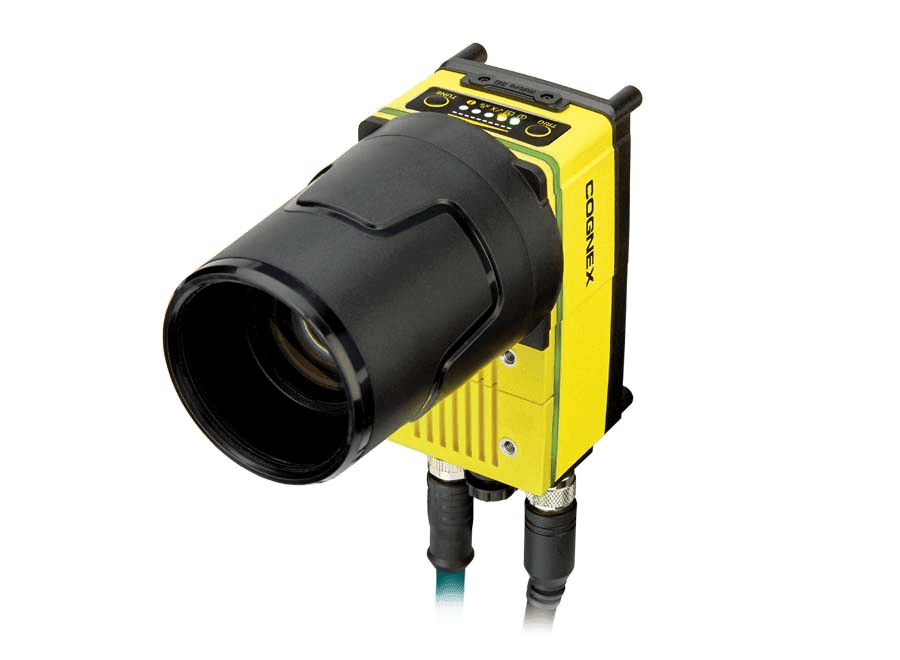

IN-SIGHT 9902L LINE SCAN MONOCHROME VISION SYSTEM
- Resolution: 32MP (2048 x 16384) - 2K pixels x up to 16,000 lines
- Toolset: Standard toolset plus PatMax and PatMax RedLine
- C-mount Type Lens only
- 2K line scan monochrome vision system
- Acquisition Speed: 66 K lines per second (15μs scan rate)
- Memory: 7.2 GB non-volatile flash (jobs), 8 GB SD Card (jobs, images, data)
- Protection: IP67 with lens cover (COV-7000-CMNT-LG)
- Network Communication: Gigabit Ethernet
- Industrial Protocols: IEEE 1588 / CIP-SYNC; AOP supported
- Wrap around pass/fail indicator light
| Image Sensor | Monochrome | Image Resolution | 32MP (2048 x 16384) | Maximum Acquisition Speed | NA |
| Lens | NA | Lens Type | C-mount | Discrete Inputs | 1 dedicated trigger in, 1 general purpose input |
| Discrete Outputs | 2 outputs | Lighting | NA | Communications Protocols | TCP/IP, UDP, FTP, SFTP, Telnet, SMTP, RS-232, EtherNet/IP with Rockwell Add-On Profile, PROFINET, Modbus TCP, SLMP/SLMP Scanner IEEE 1588 |
| Power | 24 VDC±10%, | Material | Die-cast and extruded aluminum housing | Protection | IP67 with C-mount lens cover |
