The HSD2000 series is a motor soft starter developed for overseas markets. The use of soft start has the effect of reducing motor starting shock, lowering starting current, and alleviating the burden on the power grid. The product is aimed at the global market and provides personalized customization. This series can customize the target country voltage, power frequency, and built-in multilingual menu through software adaptation upgrades and hardware adjustments. The product can be widely used in industries such as municipal HVAC, chemical metallurgy, solid waste sand and gravel, environmental pollution control, and agricultural and forestry irrigation. Can be applied to various motor equipment such as fans, water pumps, transmission machinery, compressors, hydraulic systems, etc

Key Features & Benefits

High Machine Efficiency (99.9%): The HSD2000 series minimizes internal thermal and electrical losses during starting, reducing direct energy costs on large medium-voltage motor assets.
Closed-Loop Voltage Ramp Starting: Solid-state SCR control ramps voltage smoothly from 0-100%, eliminating the heavy mechanical shock and voltage dips associated with direct-on-line (DOL) starting.
Optical Fiber Control Communication: High-speed, noise-immune signal transmission between the control platform and power cells improves reliability in electrically noisy industrial environments.
Intelligent Bypass Control: Automatically transfers the motor to bypass once full speed is reached, cutting heat generation and energy loss during continuous running.
Complete Motor Protection Suite: Overcurrent, overload, short circuit, phase loss, three-phase unbalance, undervoltage and overvoltage protection are built into both the MV and LV series.
Global Voltage & Frequency Customization: The LSD100-B low-voltage series adapts to target-country voltage, power frequency and language through software and hardware configuration.
Flexible Control & Monitoring: Local control panel, external control, infrared remote and RS485 (Modbus RTU) options integrate with plant SCADA and DCS systems.

	Items	Descriptions
Base	Rated voltage, frequency	3 phase: 3.3kV/6.6kV/11kV, 50Hz/60Hz
	Load type	3-Phase medium-high voltage squirrel-cage asynchronous/synchronous motor
	Signal transmission	Optical fiber
	Voltage sharing protection	RC protection circuit
	SCR peak voltage	6500V/pcs.
	Machine efficiency	99.9%
	Overload capacity	125% full load current continuous operation 400% full load current operation for 60 seconds 500% full load current operation for 30 seconds >6 times full load current 1 cycle waveform
Performance	Inching	Voltage 0-100%
	Promote	Voltage 40-100%
	Starting point of slope	Initial voltage 10-50%
	Current limit starts	Current limit: 100-500%, protection time: 1-200 sec.
	Soft Stop	1-30 sec.
	Docking stop	Docking stop
	Control method	Control panel, external, infrared remote control, RS485

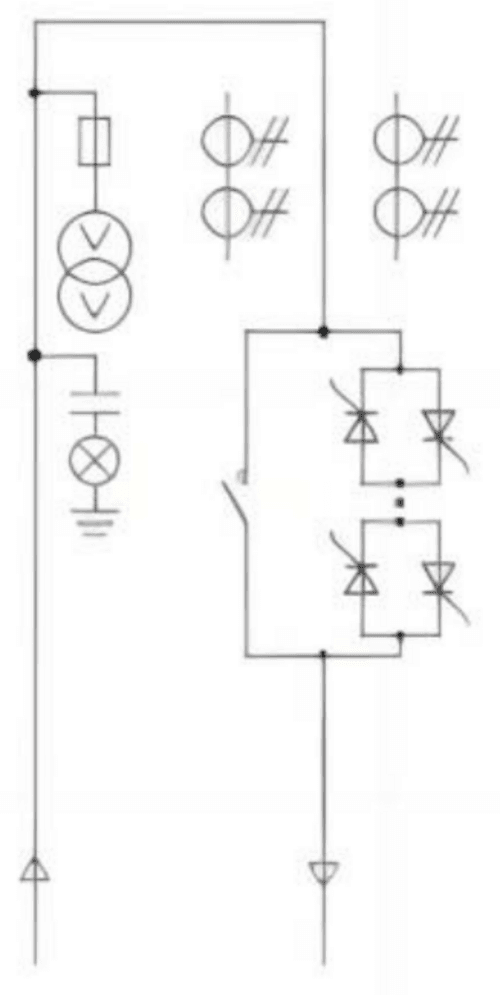

	Main circuit	6 inputs and 3 outputs
	Continuous start interval	When the ambient temperature is >40°C and the starting current is >400%Ie, the interval is >=15 minutes. When the temperature is low and the starting current is relatively small, the gap can be appropriately reduced, but >6 minutes
	Starting current	<= 400% rated motor current
Environment	Height	Altitude below 1000 m (above 1000 m requires derating)
	Operation	-10°~+40°C
	Humidity	5%~95%, no condensation of water droplets
	Vibration	<5.9 m/s2 (0.6 g)

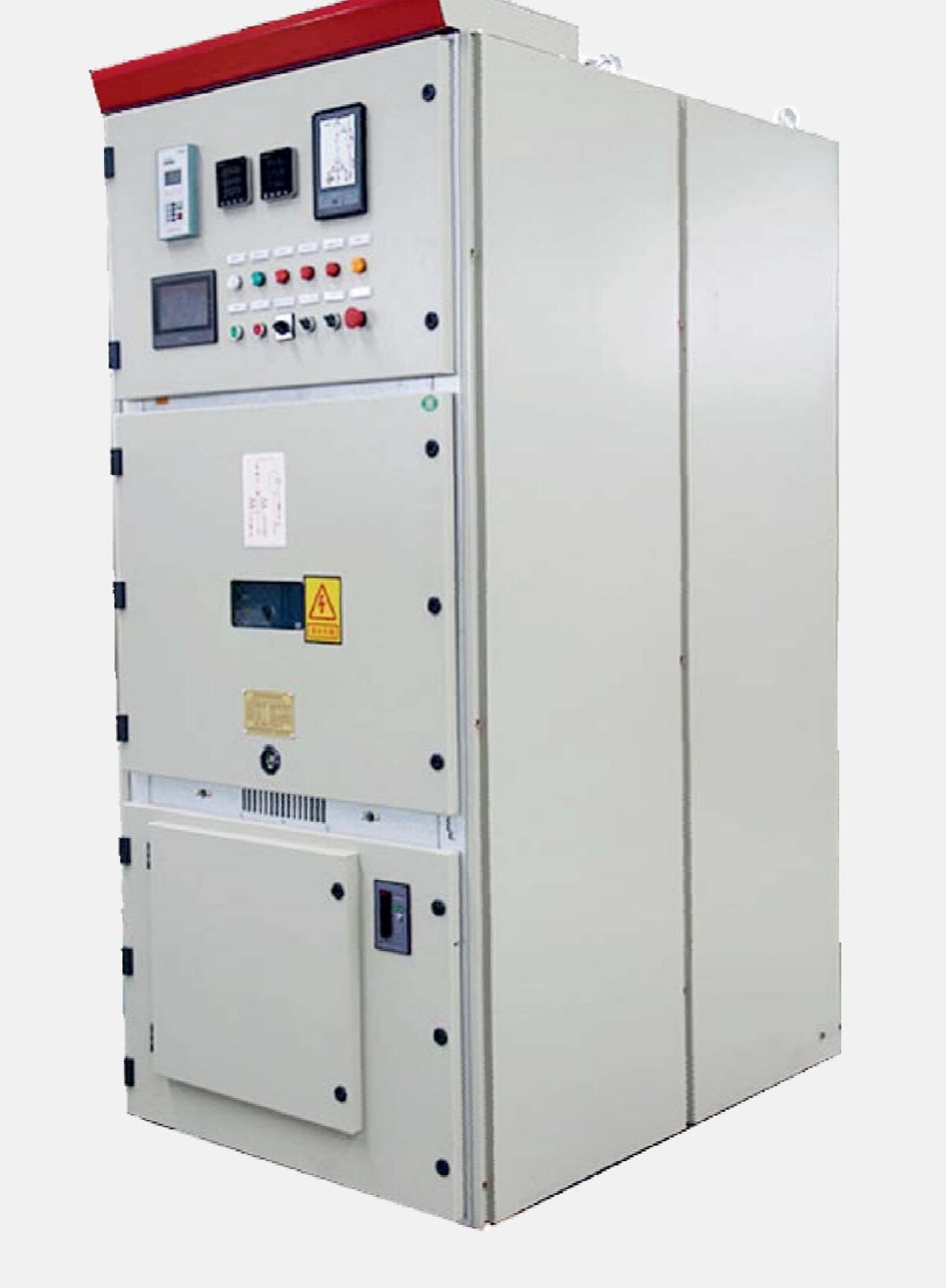

MV Soft Starter

Download MV Soft Starter Catalogue.
