DAQ Cards

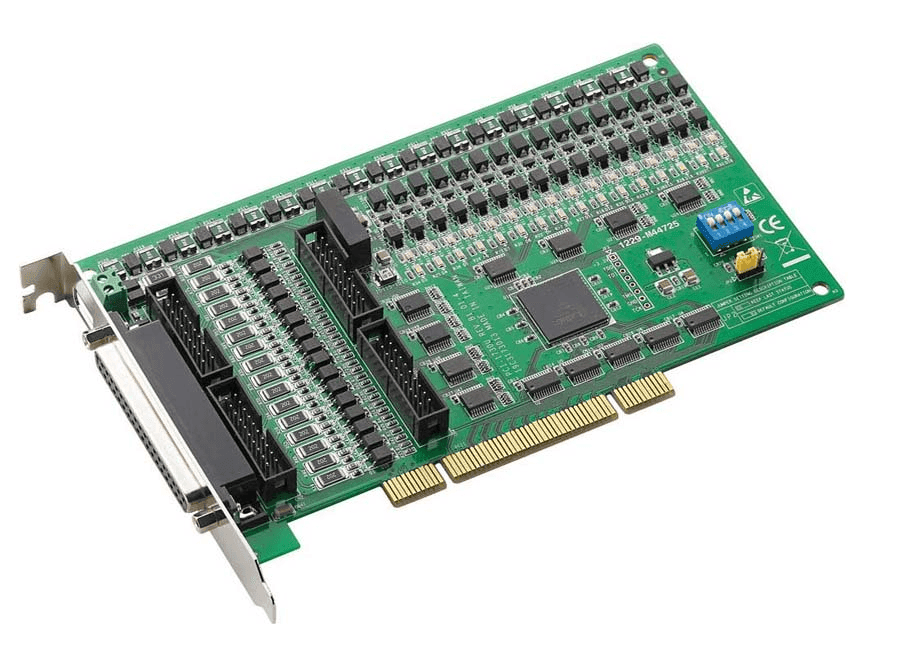

PCI-1730U-BE
32-ch Isolated Digital I/O Universal PCI Card
- ISA-compatible with PCL-730
- 32-ch TTL DI/O (16-ch digital input,16-ch digital output)
- High output driving capacity
- Interrupt handling capability
- 2 x 20-pin connectors for isolated DI/O channels
- 2 x 20-pin connectors for TTL DI/O channels
- PCI-1730U, PCI-1733, and PCI-1734 offer isolated digital input channels as well as isolated digital output channels with isolation protection up to 2,500 VDC, which makes them ideal for industrial applications where high-voltage isolation is required. There are also 32 TTL digital I/O channels on PCI-1730U
- D-type connector for isolated input and output channels
- High-voltage isolation on output channels
| Type | DAQ Card | Sampling Speed | - | Resolution | NA |
| DI | 16 | DO | 16 | AI | NA |
| AO | NA | ||||
