DAQ Cards

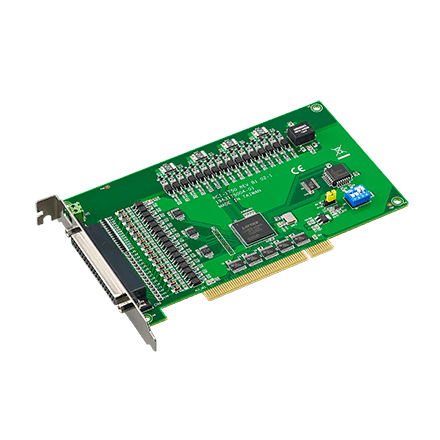

PCI-1752USO-BE
64-ch Isolated Source Type (PNP) Digital Output Universal PCI Card
- 64-ch Sink Type (NPN) Isolated Digital Output Module (PCI-1752U Only)
- 64-ch Source Type (PNP) Isolated Digital Output Module (PCI-1752USO Only)
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High-sink/source current on isolated output channels (200 mA max./channel)
- Output status readback
- Keeps the output settings and values after system hot reset,
- Channel-freeze function,
- High-density 100-pin SCSI connector,64-ch Isolated Digital Output Universal PCI Card.
| Type | DAQ Card | Sampling Speed | - | Resolution | NA |
| DI | NA | DO | 64 | AI | NA |
| AO | NA | ||||
