DAQ Cards

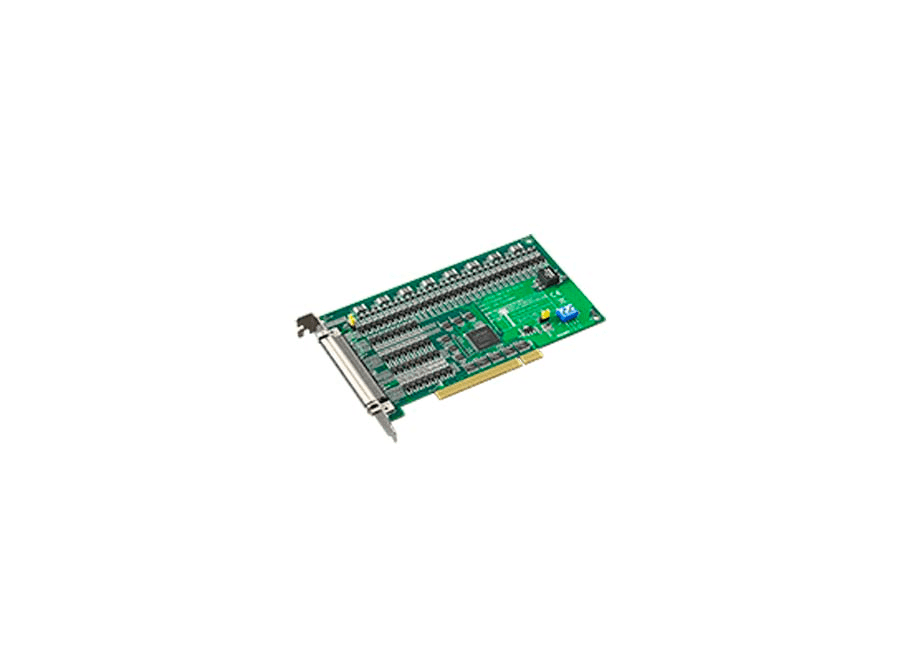

PCI-1756-BE
64-ch Isolated Digital I/O PCI Card
- Either ± voltage input for DI by group
- High-voltage isolation input/output channels (2,500 VDC)
- Interrupt handling capability
- High over-voltage protection (70 VDC) for DI
- High-sink current on isolated output channels (200 mA max./channel)
- Output status readback
- Keeps output settings/ values after system hot reset,
- 2,000 VDC ESD protection for DI,
- High-density 100-pin SCSI connector,
- 64-ch Isolated Digital I/O PCI Card.
| Type | DAQ Card | Sampling Speed | - | Resolution | NA |
| DI | 32 | DO | 32 | AI | NA |
| AO | NA | ||||
