DAQ Cards

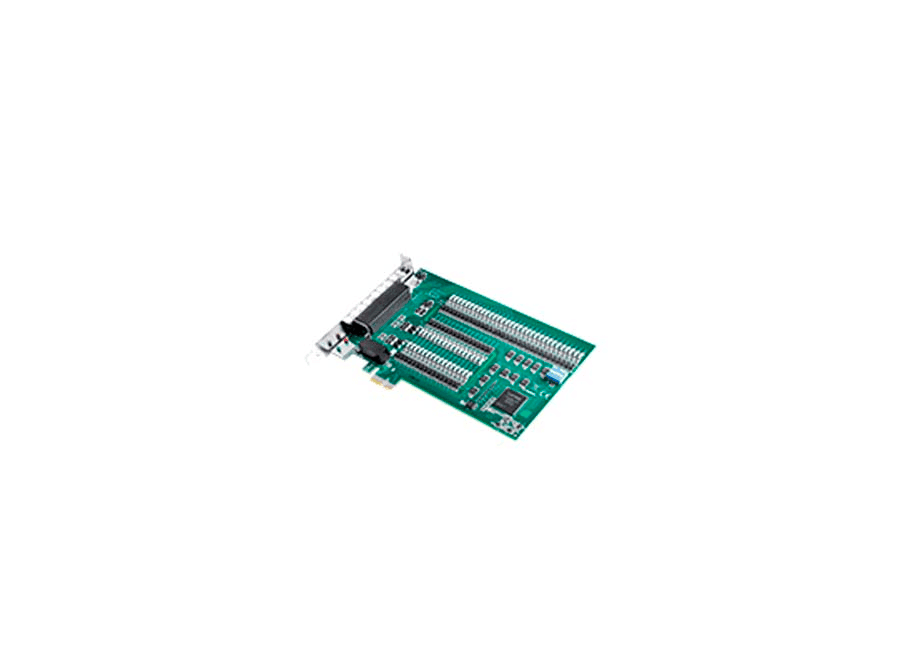

PCIE-1758DO-AE
128-ch Isolated Digital Output PCIE Card
- Interrupt handling capability for each channel
- 128 isolated digital output channels (64 channels for PCI-1758UDIO)
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High-sink current for isolated output channels (90 mA max./channel)
- BoardID™ switch
- Digital output value retained after hot system reset
- 128-ch Isolated Digital I/O PCI Express Card,PCIE-1758DI and PCIE-1758DIO,
- 128 isolated digital input channels (64 channels for PCI-1758UDIO),
- Wide input range (10 ~ 30 VDC),
- High ESD protection (2,000 VDC),
- Digital Filter function,
- PCIE-1758DO and PCIE-1758DIO.
| Type | DAQ Card | Sampling Speed | - | Resolution | NA |
| DI | NA | DO | 128 | AI | NA |
| AO | NA | ||||
