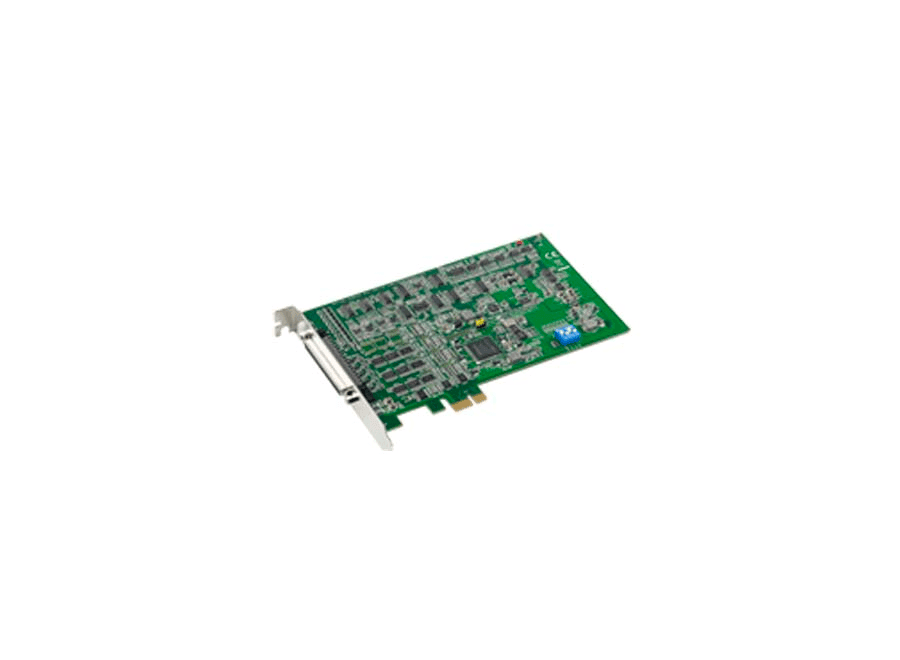

PCIE-1810-AE
500 kS/s, 12-bit, 16-ch Multifunction PCIE Card
- 16 analog inputs, up to 800 KS/s, 12-bit resolution
- 2 analog outputs, up to 500 KS/s, 12-bit resolution
- Support for digital trigger and analog trigger (AI only)
- 24 programmable digital I/O lines?? Two 32-bit programmable counter/
- Two 32-bit programmable counter/timers
- Onboard FIFO memory ( 4 K samples)
- Automatic channel/ gain scanning
- Support for Microsoft Windows 7/10 and Linux
- The PCIE-1810 is a multifunction PCI Express card that includes digital I/O, analog I/O and counter functions. It also features a 800KS/s 12-bit A/D converter and supports analog trigger for A/D data acquisition
| Type | DAQ Card | Sampling Speed | 800 kS/s | Resolution | 12 bits |
| DI | 24 | DO | 24 | AI | 16 |
| AO | 2 | ||||
