SF4D

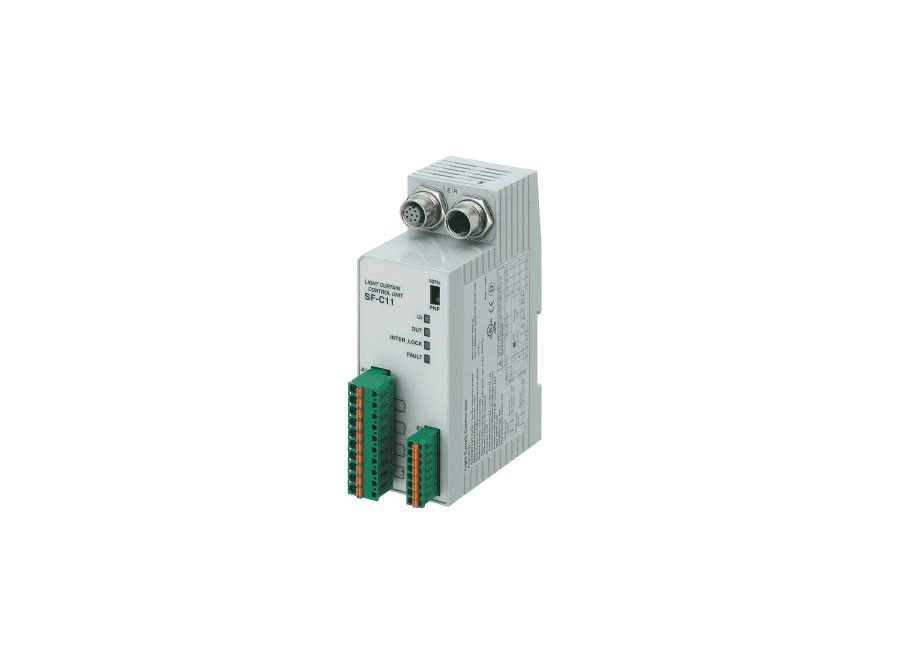

SF-C11
Safety Control unit
- Muting, Interlock & Logic Selection Function available
- Input : Safety - 8 & Reset/EDM - 2
- PNP Output : Control - 4 x PNP & Auxiliary - 4
- Communication function : RS-485 (MODBUS RTU)
- Use 8-core cable with connector to connect to the safety light curtain.
- Compatible with up to Control Category 4.
- Interference prevention wires and muting function cannot be used.
- Connecting to the safety light curtain is done using plug-in connections, which shorten setup and replacement time.
- A spring method is used for the terminal blocks for connections other than to the safety light curtain. There is no need to control tightening torques for these terminal blocks
- Removable terminal blocks reduce the work required for reconnecting wiring during maintenance.
| Type | Controller | Shape | Rectangular | Sensing Height | - |
| Sensing Range | - | Digital Error Indicator | No | Output | >Safety Output : 3 x NO Contact, >Auxiliary Output : 1 x NC (Safety Relay Contact >Semiconductor Auxiliary Output : 1 x PNP & NPN |
| Output Operation | NO & NC | Input supply | 24 VDC | Emitting Element | - |
| Connection Type | Connector Type | Beam Pitch | - | No. Beam Channels | - |
| Sensing Object Size | - | Response Time | - | Enclosure | ABS |
| Protection | IP40 | Particular Characteristics | - |
sf4d_e_cata.pdf
