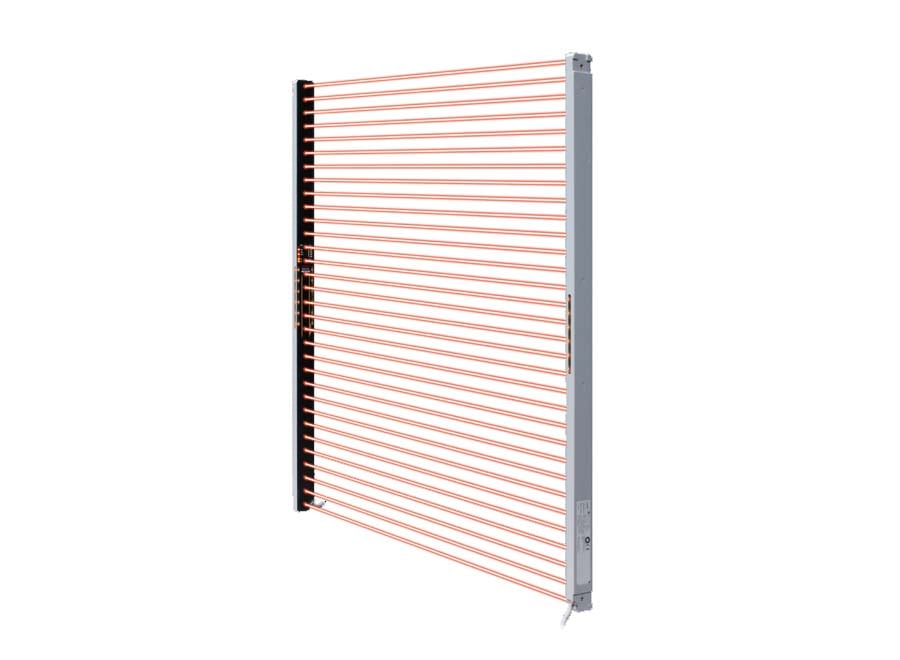

SF2C-H12-N

Ultra-slim Safety Light Curtain Type 2

Introducing Type 2 Ultra-slim Light Curtains! Featuring easy installation and reduced wiring. Available work space is expanded from the previous model, and productivity is improved. Recalculation of the safety distance is unnecessary for each time safety light curtain length is changed. Safety light curtain wiring consists of just five wires each for the emitter and receiver, allowing you to easily implement safety measures in about the same amount of time as with an area sensor with using optical synchronization. The emitter has an effective aperture angle of ±5° or less for an operating range of 3 m 9.843 ft. Compared to Type 4 safety light curtains (which have an effective aperture angle of ±2.5° or less), the SF2C series is easy to align and install. he standard mounting bracket is already mounted for easy installation. An IP67 (IEC) rating is achieved even in an ultra-slim resin body using a laser welding method

Type	Type 2, Hand Protection	Shape	-	Sensing Height	240 mm
Sensing Range	0.1 to 3 m	Digital Error Indicator	No	Output	NPN
Output Operation	NC	Input supply	24 VDC	Emitting Element	-
Connection Type	Fixed Cable, 3m	Beam Pitch	20 mm	No. Beam Channels	12
Sensing Object Size	ø25 mm	Response Time	< 20 ms	Enclosure	Polycarbonate Alloy
Protection	IP65, IP67 (IEC)	Particular Characteristics	Large Multi- purpose Indicator
