Control IPC : APAX-5000 Series Models Available

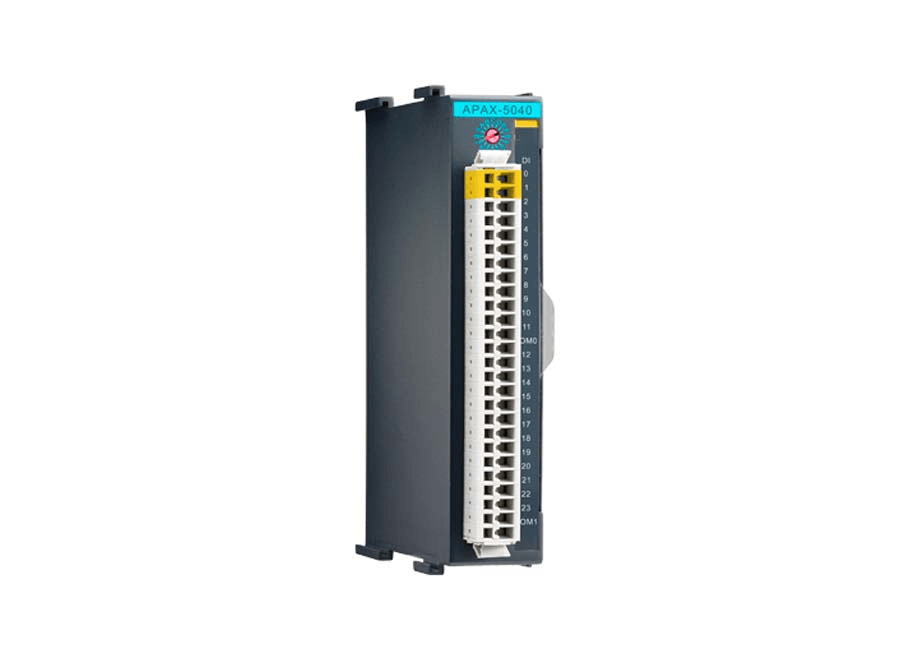

Control IPC : Apax-5000 SeriesAPAX-5040

24-ch Digital Input Module

Supports both sink and source type input
Rated voltage input value: 24 VDC
±70 VDC over voltage protection
Input characteristic curve according to IEC 61131, type 1
Each digital channel has its own status LED
Isolation between channels and backplane

DAQ Type: REMOTE I/O
DI: Yes
DO: No
AI: No
AO: No

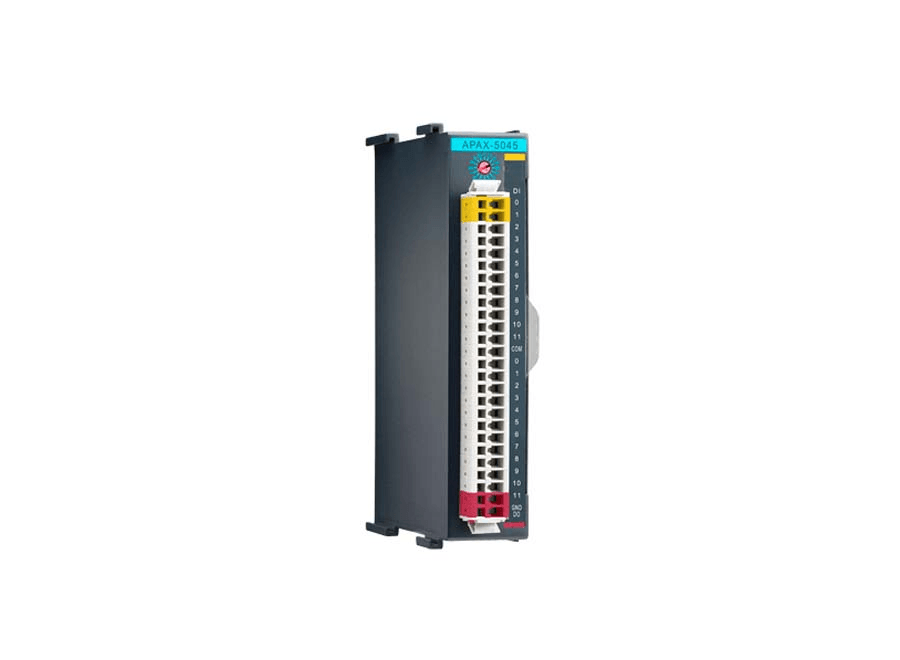

Control IPC : Apax-5000 SeriesAPAX-5045

24-ch Digital Input/Output Module

12 DI channels and 12 DO channels
±70 VDC over voltage protection for DI channels
Short circuit and thermal shutdown protection
Input characteristic curve according to IEC 61131, type 1
Each digital channel has its own status LED
Isolation between channels and backplane

DAQ Type: REMOTE I/O
DI: Yes
DO: Yes
AI: No
AO: No

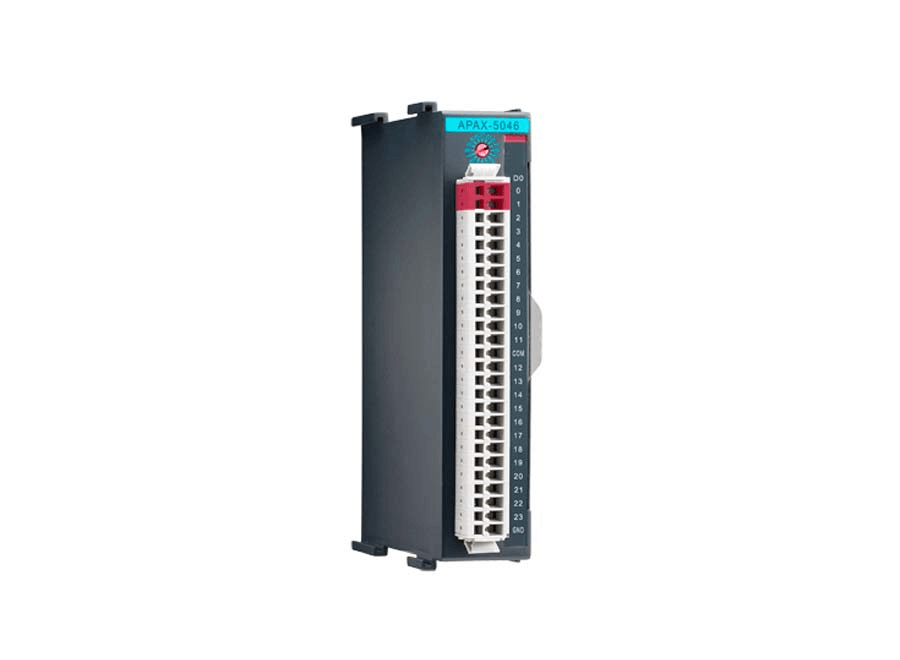

Control IPC : Apax-5000 SeriesAPAX-5046

24-ch Digital Output Module

Voltage Range: 8 ~ 35 VDC
Short circuit protection
Thermal shutdown protection
Each digital channel has its own status LED
Isolation between channels and backplane

DAQ Type: REMOTE I/O
DI: No
DO: Yes
AI: No
AO: No

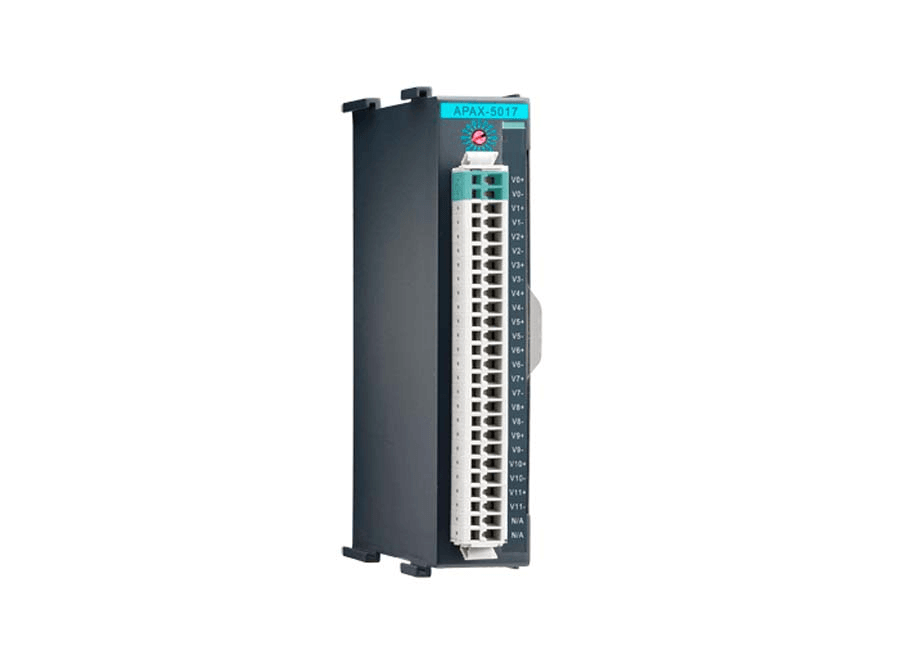

Control IPC : Apax-5000 SeriesAPAX-5017

12-ch Analog Input Module

12-ch voltage and current input
Range: ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0~20mA, 4~20 mA
2500 VDC over voltage protection
Input characteristic curve according to IEC 61131, type 1
Isolation between channels and backplane

DAQ Type: REMOTE I/O
DI: No
DO: No
AI: Yes
AO: No

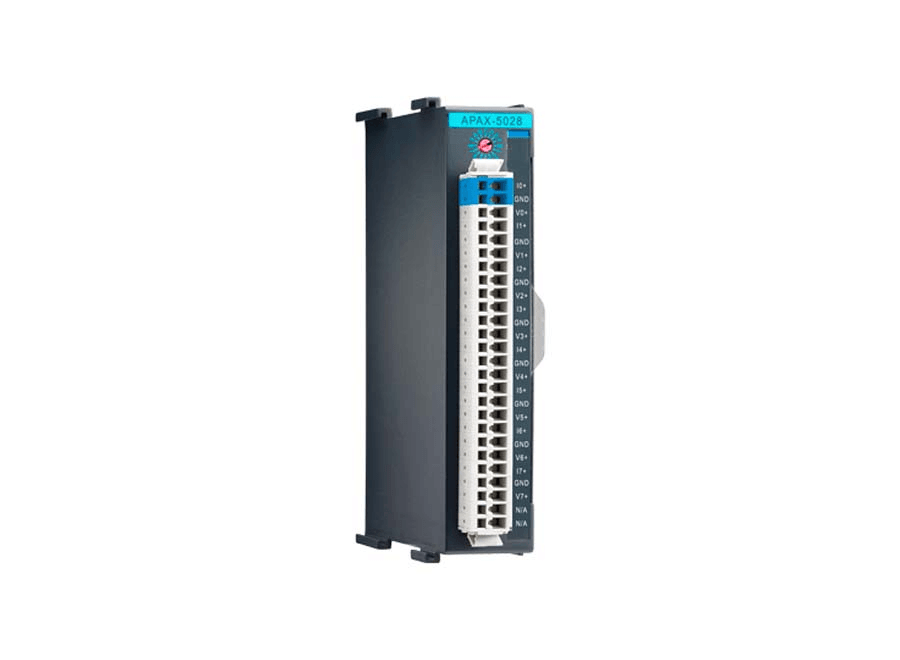

Control IPC : Apax-5000 SeriesAPAX-5028

8-ch Analog Output Module

8-ch voltage and current output
Range: ±2.5 V, ±5 V, ±10 V, 0~2.5 V, 0~5 V, 0~10 V, 0~20 mA, 4~20 mA
Resolution: 14-bit
Short Circuit Protection
Isolation between channels and backplane

DAQ Type: REMOTE I/O
DI: No
DO: No
AI: No
AO: Yes

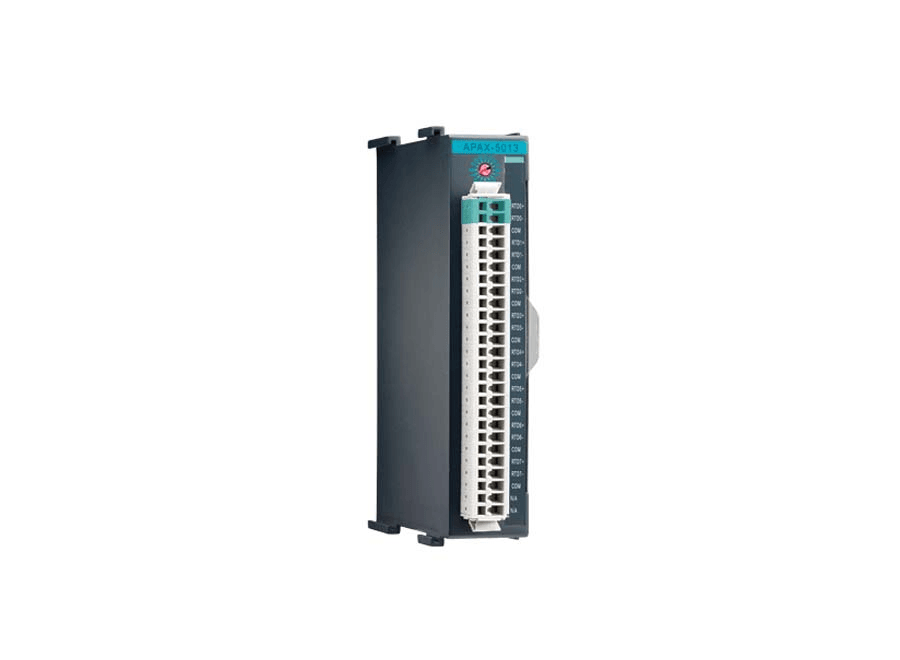

Control IPC : Apax-5000 SeriesAPAX-5013

8-ch RTD Module

Wire Burn-out Detection
High Density Channel design, total 8 channels

DAQ Type: REMOTE I/O
DI: No
DO: No
AI: Yes
AO: No

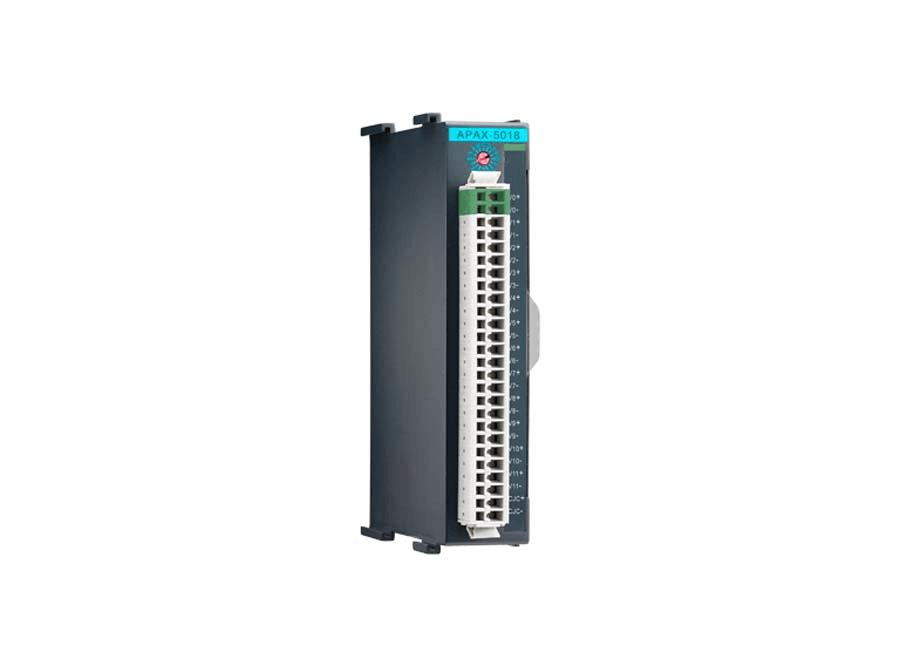

Control IPC : Apax-5000 SeriesAPAX-5018

12-ch Thermocouple Input Module

Isolation between channels and backplane
Supports wire burn-out detection functionality (4 ~ 20 mA and Thermocouple)
Range: ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
Supports configurable input channels with different input type and range
High density 12-ch analog input solution for reading thermocouple sensor data

DAQ Type: REMOTE I/O
DI: No
DO: No
AI: Yes
AO: No

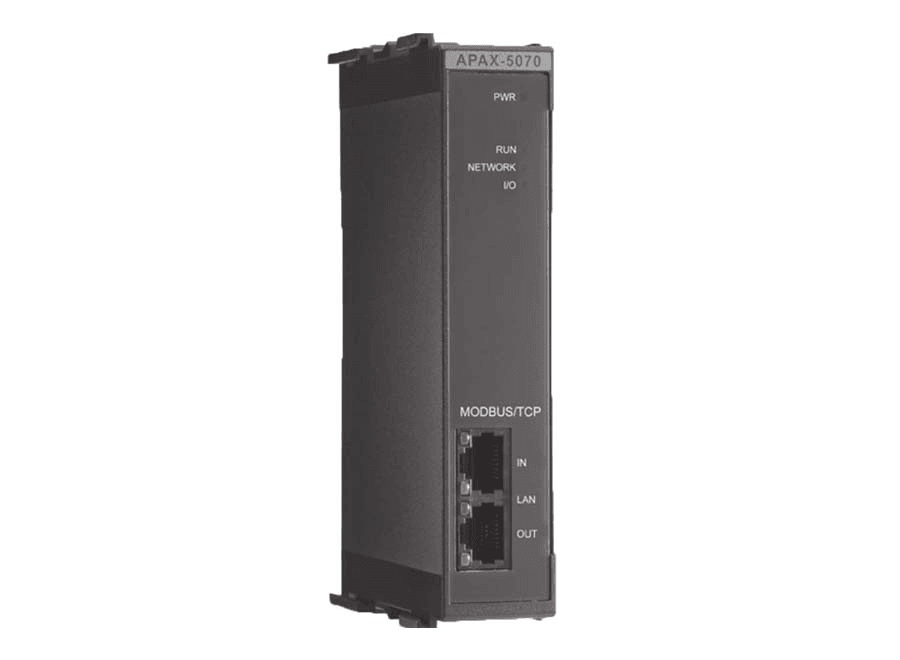

Control IPC : Apax-5000 SeriesAPAX-5070

Modbus/TCP Communication Coupler

Support Modbus/TCP protocol which can be connected with Modbus/TCP master
Dynamic configuration allows users to configure multiple inputs functions in one module
Two RJ-45 ports with the same IP address for building daisy chains
Flexible Modbus address mapping either automatically or manually
Able to connect to APAX digital I/O modules (max. 768 points) or analog I/O modules (max.192 points)
With 16 sets of onboard alarm which can be enabled by utility without any programming

DAQ Type: REMOTE I/O
DI: No
DO: No
AI: No
AO: No

Control IPC : Apax-5000 SeriesAPAX-5090

4-port RS-232/422/485 Virtual COM with APAX Bus

4 COM ports for APAX controller
APAX (EtherIO) bus connector
Virtual COM operation mode
COM 1, COM 2: RS-232/422/485
COM 3, COM 4: RS-232/422/485
8 data bits and 1, 1.5, 2 stop bits
Baud rate 600bps ~ 115.2 kbps

DAQ Type: REMOTE I/O
DI: No
DO: No
AI: No
AO: No

Control IPC : Apax-5000 SeriesAPAX-5071

PROFINET Communication Coupler

2 x RJ-45 (2-channel switch, share same IP address) Connector
PROFINET Communication Coupler

DAQ Type: REMOTE I/O
DI: No
DO: No
AI: No
AO: No
