EtherCAT I/O Expansions Models Available

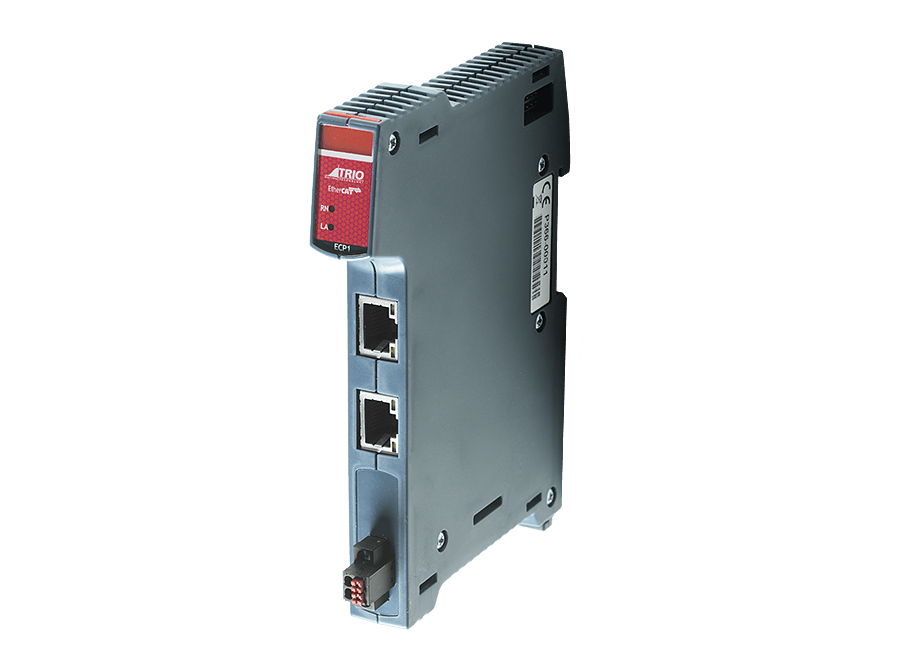

ETHERCAT COUPLER

Ethercat I/O Expansions SeriesETHERCAT COUPLER(P366)

EtherCAT COUPLER module

Connect Controller to EtherCAT I/O modules.
Power supply 24VDC
EtherCAT protocol
Data rate 100Mbps

Controller Type: I/O Expansions
Control Mode: EtherCAT
Communication: EtherCAT

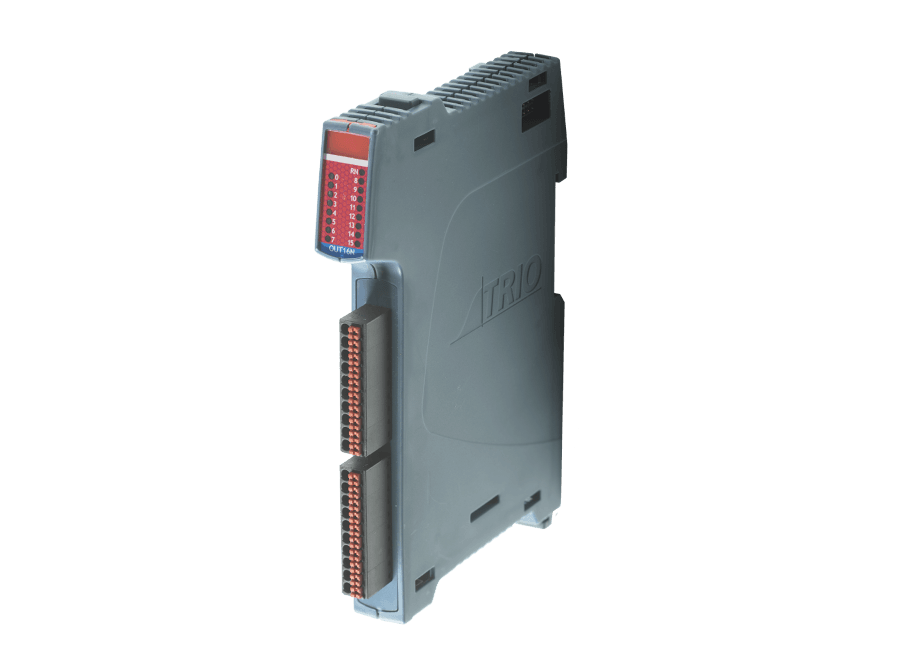

16 OUT NPN

Ethercat I/O Expansions Series16-OUT PNP(P371)

16-OUT PNP module

24Vdc sourcing (PNP)
16 Output channels
500mA/channel output capacity
ON time 110us, OFF time 210us

Controller Type: I/O Expansions
Control Mode: EtherCAT
Communication: EtherCAT

16 OUT NPN

Ethercat I/O Expansions Series16-IN PNP(P372)

16-IN PNP module

24Vdc sourcing (PNP)
16 Input channels
RC network 18KHz
Input current 3.5mA

Controller Type: I/O Expansions
Control Mode: EtherCAT
Communication: EtherCAT

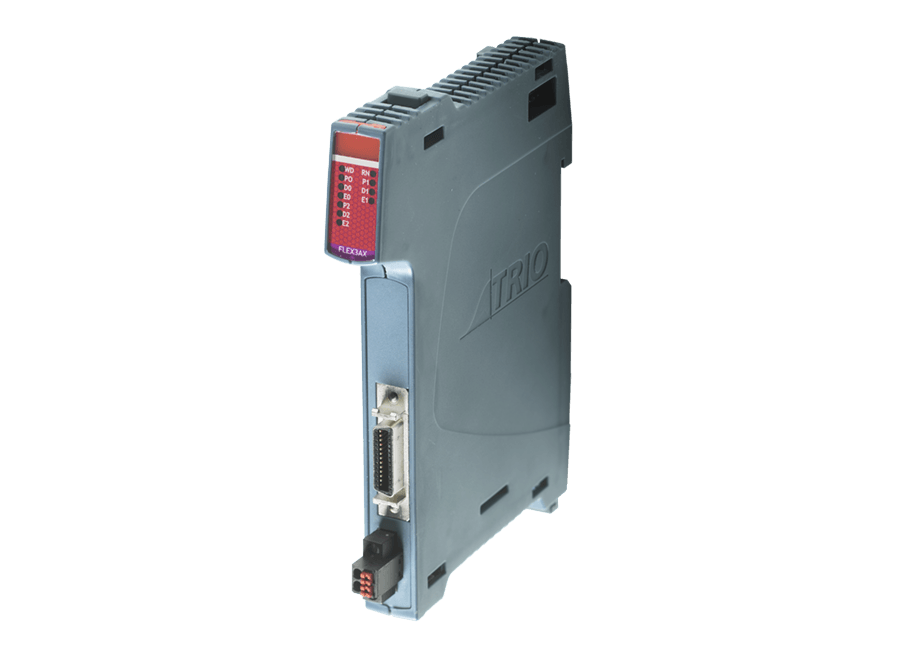

FLEX 3 AXIS

Ethercat I/O Expansions SeriesFLEX 3-AXIS(P375)

FLEX 3-AXIS module

3 Stepper or Encoder Axis module
8 MHz encoder count rate.
8 MHz step rate.
WDOG output to enable

Controller Type: I/O Expansions
Control Mode: EtherCAT
Communication: EtherCAT

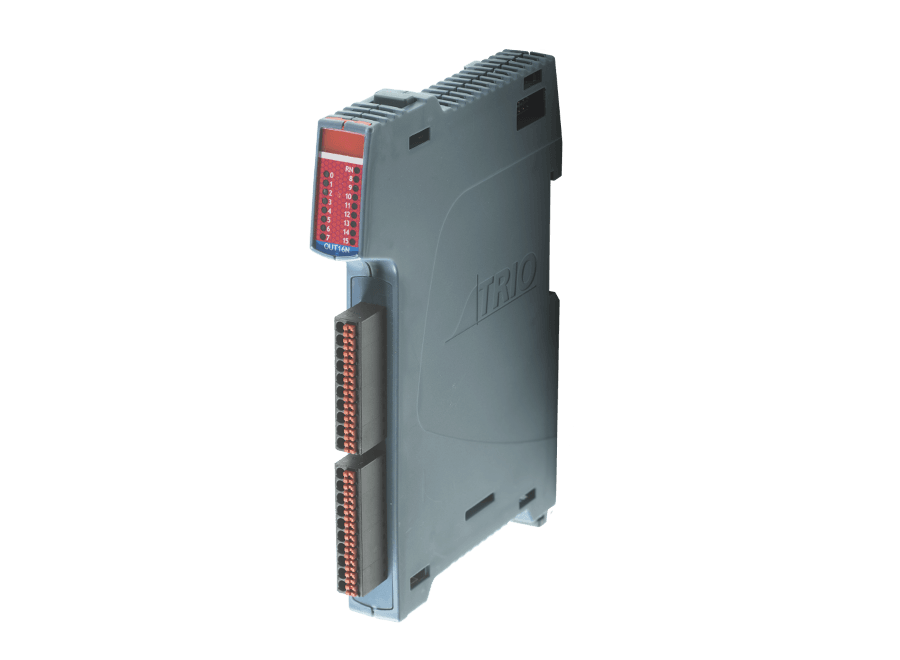

16 OUT NPN(P376)

Ethercat I/O Expansions Series16-OUT NPN(P376)

16-OUT NPN module

24Vdc sinking (NPN)
16 Output channels
500mA/channel output capacity
ON time 75us, OFF time 105u

Controller Type: I/O Expansions
Control Mode: EtherCAT
Communication: EtherCAT

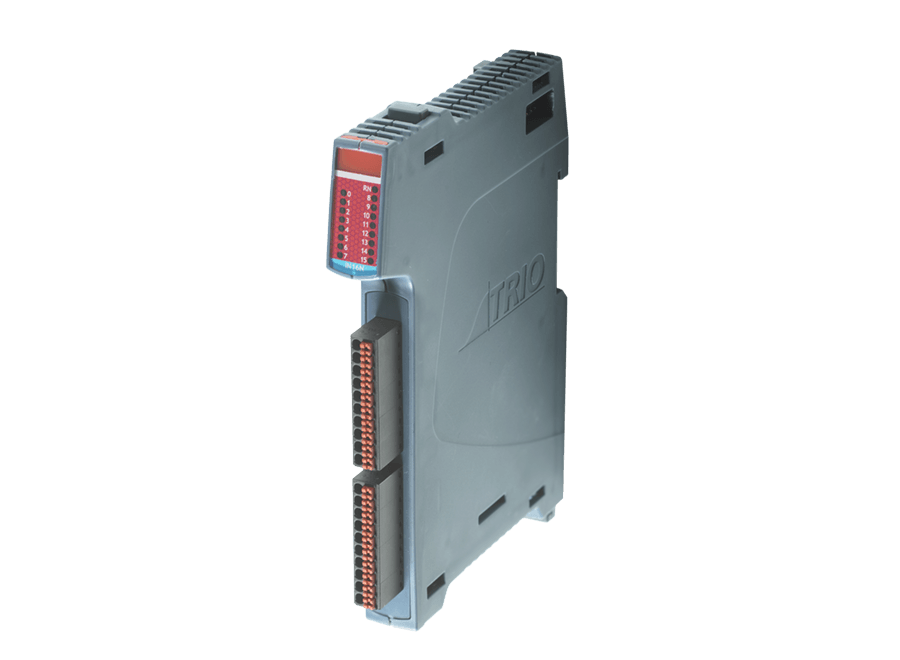

16 IN NPN(P377)

Ethercat I/O Expansions Series16-IN NPN(P377)

16-IN NPN module

24Vdc sinking (NPN)
16 Input channels
RC network 18KHz
Input current 3.5mA

Controller Type: I/O Expansions
Control Mode: EtherCAT
Communication: EtherCAT

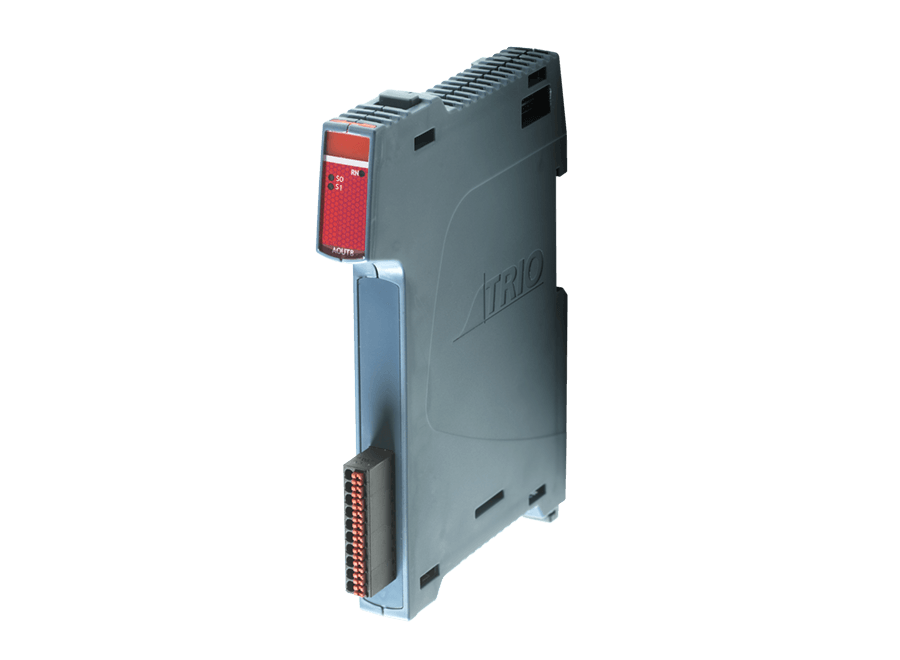

8 ANALOGUE OUTPUT(P378)

Ethercat I/O Expansions Series8-ANALOGUE OUTPUT(P378)

8-ANALOGUE OUTPUT module

Power supply via EBUS
±10Vdc, Analogue 8 Output channels
12bit Resolution
6mA signal current

Controller Type: I/O Expansions
Control Mode: EtherCAT
Communication: EtherCAT

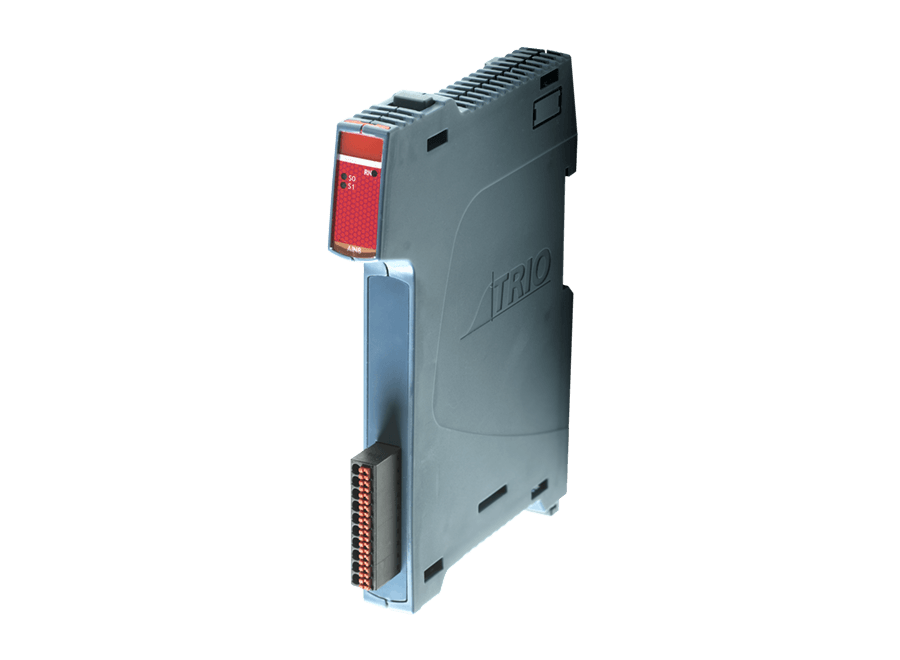

8 ANALOGUE INPUT(P379)

Ethercat I/O Expansions Series8-ANALOGUE INPUT(P379)

8-ANALOGUE INPUT module

Power supply via EBUS
±10Vdc, Analogue 8 Input channels
12bit Resolution
20mA signal current

Controller Type: I/O Expansions
Control Mode: EtherCAT
Communication: EtherCAT
