OC60 Models Available

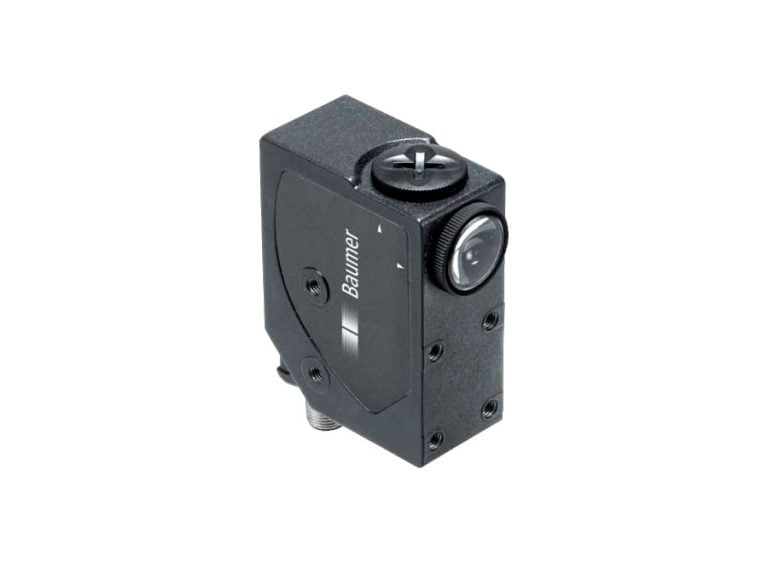

Oc60 SeriesOC60.CU-DLMT.7AF

Reliable Detection of Print Mark in Low contrast

Light source: UV LED
Sensing Range : 10 to 20 mm,
Output : PNP / NPN / Analog Voltage
M12 Connector Type

Type: Luminescence sensor
Sensing Range: 10 to 20 mm
Beam Spot Diameter: 2 x 8 mm

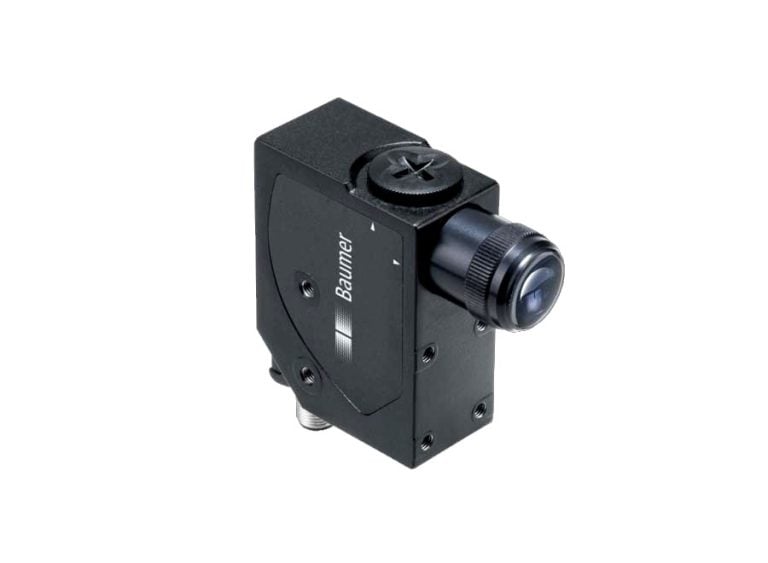

Oc60 SeriesOC60.CU-DLMT.7AF/H012

Reliable Detection of Print Mark in Low contrast

Light source: UV LED
Sensing Range : 20 to 40 mm
Output : PNP / NPN / Analog Voltage
M12 Connector Type

Type: Luminescence sensor
Sensing Range: 20 to 40 mm
Beam Spot Diameter: 3 x 11 mm


Oc60 SeriesOC60.CU-DLMT.7AF/H013

Reliable Detection of Print Mark in Low contrast

Light source: UV LED
Sensing Range : 30 to 50 mm
Output : PNP / NPN / Analog Voltage
M12 Connector Type

Type: Luminescence sensor
Sensing Range: 30 to 50 mm
Beam Spot Diameter: 4 x 15 mm
