Modular I/O System: Adam-5000

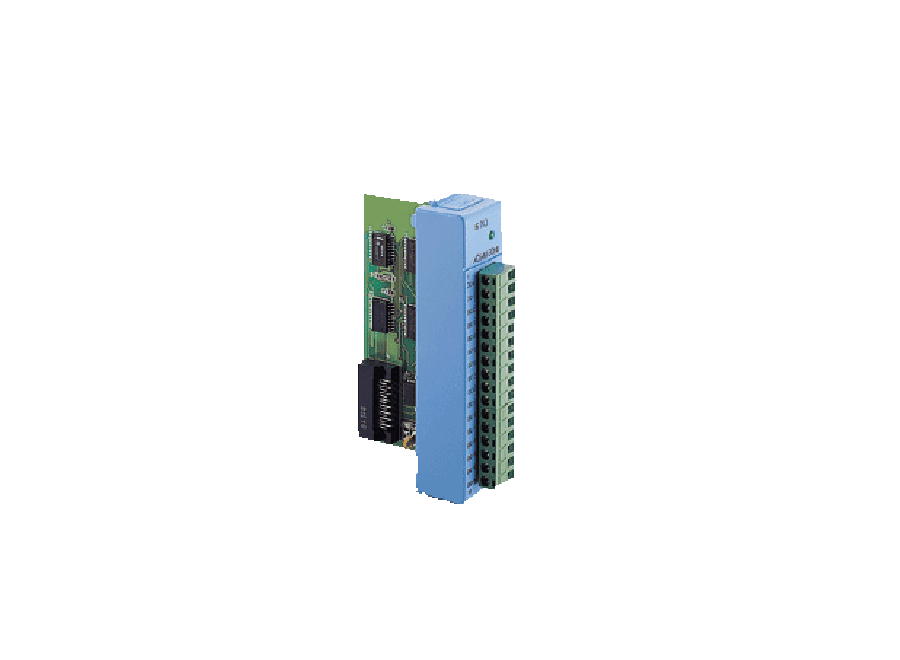

ADAM-5056
16-ch Digital Output Modules
- Operating voltage: 30 Vmax
- Digital output: Open collector to 30 V, 100 mA max. load
- Power consumption: 0.25 W (typical); 0.53 W (max.)
- Power dissipation: 300 mW for each channel
- Channels: 16
- The ADAM-5056 features sixteen digital output channels. The digital outputs are open-collector transistor switches that you can control from the ADAM-5000 main unit. You also can use the switches to control solid-state relays.
| Type | REMOTE I/O | DI | NA | DO | 16 |
| AI | NA | AO | NA | Thermocouple | NA |
| RTD | NA | Counter / Timer | NA | Communication Port | NA |
| Communication Protocol | NA | Mounting | NA | Power Supply | NA |
