Industrial POE Switches & Solutions

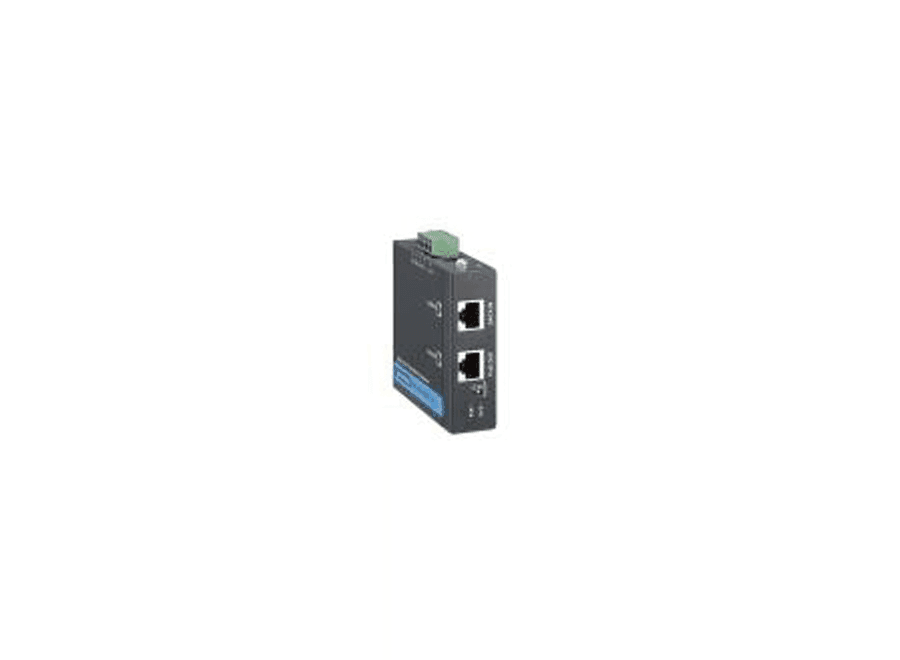

EKI-2701MPI-5G
Hardened multi-speed Mega PoE Injector
- Supports multi data rate 10M/100M/1G/2.5G/5G for Data in and PoE out
- IEEE 802.3af/at/bt compliant
- Force mode power supports up to 90W by DIP switch
- Power input 54~57 VDC, injects power up to 90W
- EKI-2701MPI-5G is a next-generation injector which is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology, both data and power to Ethernet-enabled devices run on a standard CAT6(A)/CAT7 cable to serve up to 90W,Provides slim size and DIN-rail with IP40 metal mechanism, Supports operating temperatures from -40 ~ 75°C
| Type | PoE Switches | LAN | 10/100/1000Base-T (X)/2.5G/5G | Optical Fiber | NA |
| Connectors | DATA IN: RJ45 PoE OUT: RJ45 |
Transmission Distance |
100 m | Transmission Speed | 5Gbps |
| Standard | IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt, 802.3ab/802.3bz |
LED Indicators | PoE, SYS | Protocol Support | NA |
| Switch Properties | PoE Force Mode: ON/OFF (default OFF) |
Power Supply | 55~57 V DC (Single input) | Certification | EMI : CE, FCC EMS : EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 Safety : UL62368 |
