Industrial POE Switches & Solutions

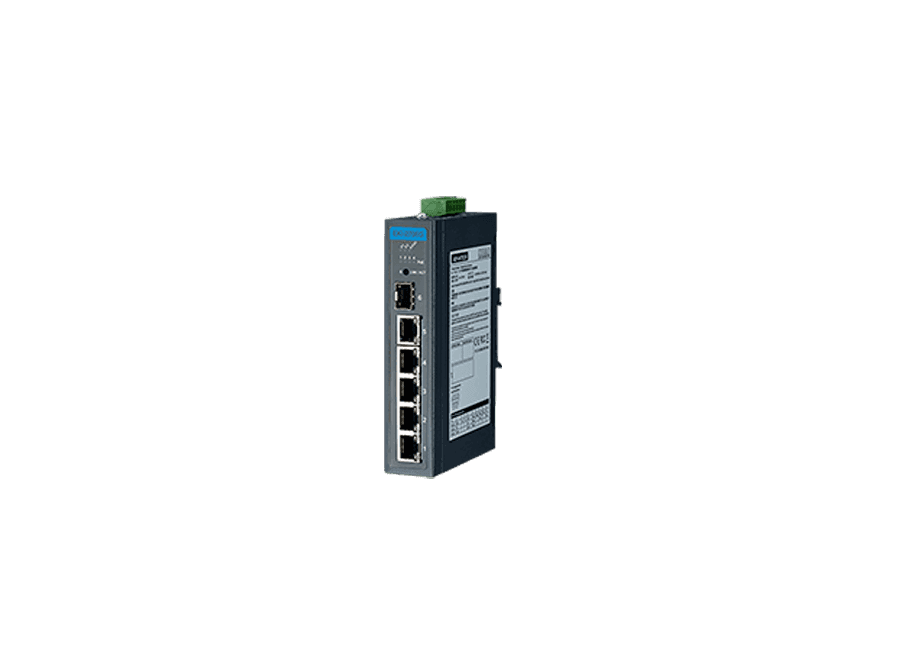

EKI-2706G-1GFP
4GE PoE+1G+1G SFP, Unmanaged Ethernet Switch
- Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
- Supports jumbo frame transmission up to 9 kbytes
- DIN-rail with IP30 metal mechanism
- Redundant 48 VDC power input
- 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper + 1 Gigabit SFP ports
- The EKI-2706 series support 48VDC redundant power input and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The EKI-2706 series support up to 4-port IEEE 802.3 af/at PoE /PoE ports, it is more convenient for users to power up their devices. Each port of EKI-2706 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2706 comes with compact metal housing that rates IP30 to help against from dusty industrial environments
| Type | PoE Switches | LAN | 4 x 10/100Mbps(RJ-45)+ 1 x 10/100/1000Mbps(RJ-45) +1 x 100/1000Mbps(SFP) EKI-2706G-1GFP/I : 5 x 10/100/1000Mbps(RJ-45)+ 1 x 100/1000Mbps(SFP) |
Optical Fiber | NA |
| Connectors | 5 x RJ-45 + 1 x SFP 6-pin removable screw terminal (power & relay) |
Transmission Distance |
100 m | Transmission Speed | 1000 Mbps |
| Standard | IEEE 802.3, 802.3u, 802.3x, 802.1ab, 802.1z |
LED Indicators | P1, P2, P-Fail Link / Speed / Activity |
Protocol Support | NA |
| Switch Properties | 4GE PoE+1GE+1G SFP Unmanaged Industrial PoE Switch |
Power Supply | 48 V DC | Certification | Safety : UL 62368 EMI : CE, FCC Class A EMS : EN 61000-4-2 |
