Industrial POE Switches & Solutions

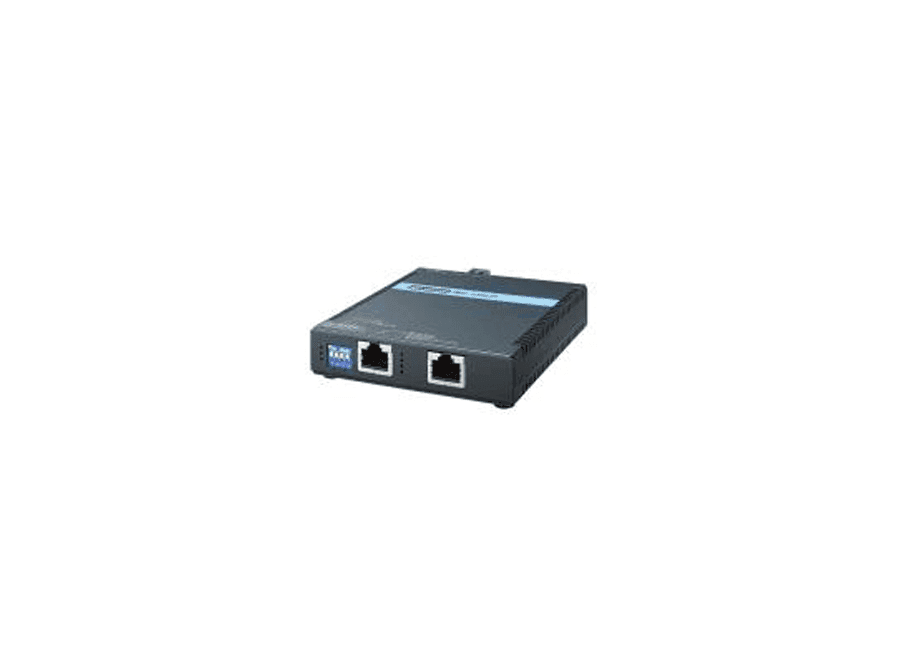

IMC-150LPI
Hardened PoE Long Reach Ethernet Extender
- Extends Ethernet up to 800m at 10 Mbps or 500m at 100 Mbps over UTP cable
- Dual design with PoE+ PD/PSE
- Railway Trackside EN 50121-4
- Features Link Fault Pass Through (LFPT)
- Switch-selectable for configuring LAN rate and connection type
- Injecting data and power together, the IMC-150L series offers brand new leading products which break the 100-meter limitation for greater Ethernet transmission distances.
| Type | PoE Switches | LAN | 2 X 10/100Base-T(X) | Optical Fiber | NA |
| Connectors | 1 x 10/100Mbps RJ-45 PD 1 x 10/100Mbps RJ-45 PSE |
Transmission Distance |
MANUAL | Transmission Speed | 100 Mbps |
| Standard | IMC-150LPI IEEE 802.3, 802.3u, 802.3x, 802.3at/af IMC-150LI IEEE 802.3, 802.3u, 802.3x |
LED Indicators | P1/PD 10M LNK/ACT, 100M LNK/ACT P2/PSE 10M LNK/ACT, 100M LNK/ACT |
Protocol Support | NA |
| Switch Properties | LFPT, AUTO-Nego, Speed, UTP/COAX PIN 1 LFPT ON/OFF PIN 2 AUTO ON/OFF (OFF to take effect for PIN 3) PIN 3 SPEED ON:100Mbps / OFF:10Mbps |
Power Supply | 48V DC | Certification | EMS >EN 61000-4-2 EN > 61000-4-3 EN > 61000-4-4 EN >61000-4-5 EN >61000-4-6 EN >61000-4-8 Railway : Trackside EN 50121-4 |
