Industrial POE Switches & Solutions

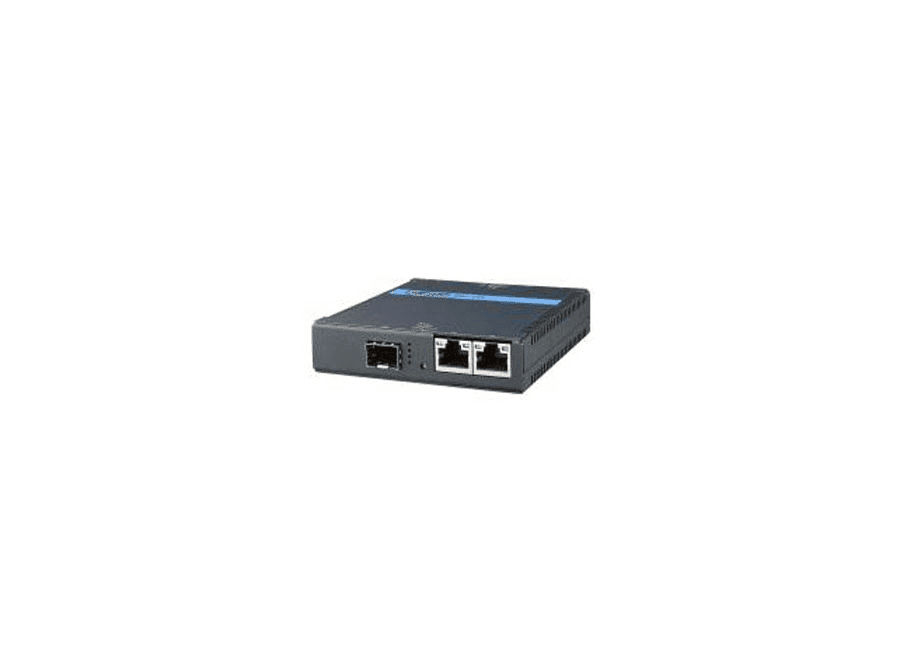

IMC-595MPI
Industrial 4TX/1SFP Light Managed PoE BT Media Converter
- Versatile 5-port, total 180W power output media converter at extended temperature
- Supports Switch/Injector mode setting by SNMP/iView
- Supports SNMP/iView for remote management
- Dip switch for LFPT and Power Force mode
- Supports LLDP
- Advantech's IMC-595MPI three-in-one mega PoE media converter is a compact, industrial grade solution that can serve as a fiber-to-Ethernet media converter, a 90W*2 PoE injector and a light management Ethernet switch, Supports Jumbo Frames up to 9,216 bytes, Supports Modbus/TCP, Supports Broadcast Storm Control ON/OFF
| Type | PoE Switches | LAN | 5 X 10/100/1000Mbps(RJ-45) | Optical Fiber | NA |
| Connectors | 4 x RJ-45 (2 x PoE) 1 x SFP |
Transmission Distance |
MANUAL | Transmission Speed | 1000 Mbps |
| Standard | IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt, 802.3ab,802.3z |
LED Indicators | System/Status//PoE UTP:/Speed/LNK/ACT Fiber(P5): LNK/ACT |
Protocol Support | NA |
| Switch Properties | PIN1 PoE Force Mode: ON/OFF (default OFF) PIN2 LFPT: ON/OFF (default ON) |
Power Supply | 55~57V DC | Certification | EMI : CE, FCC Class A, EMS : EN 61000-4-2 |
