IIOT Gateway Models Available

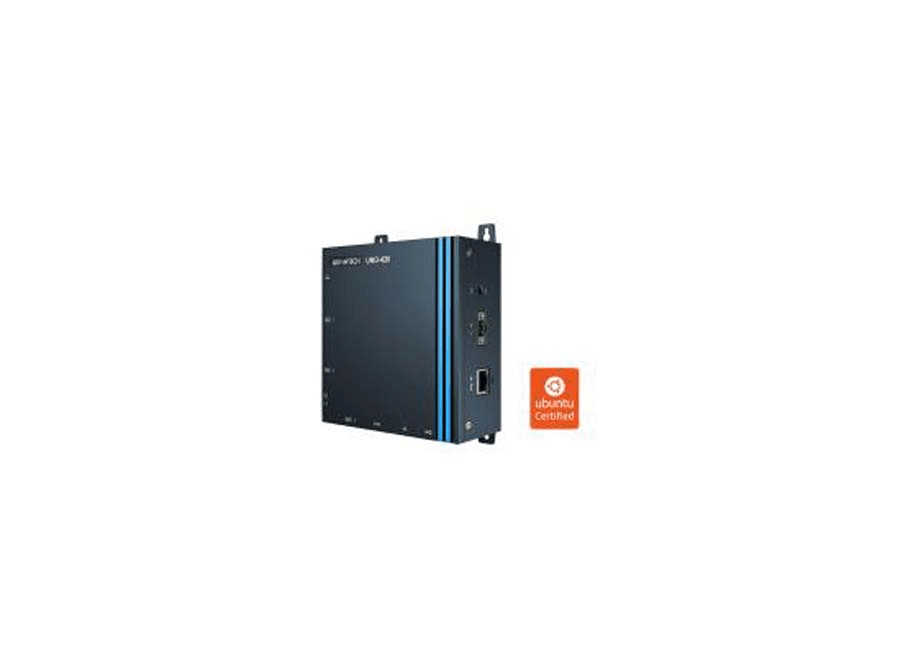

IIoT Gateway SeriesUNO-420

PoE Powered Device Sensing Gateway with Intel® Atom™ E3815

Intel Atom™ E3815 Processor with 2GB DDR3L onboard memory
2 x GbE (1 x PoE-IN), 1 x USB 3.0, 1 x HDMI, 1 x RS-485, 2 x RS-232/422/485, and 8 x Programmable GPIO
32GB eMMC storage onboard
Ruggedized compact fanless design
Support one Ethernet cable for both data & power delivery
Support Trusted Platform Module (TPM) 2.0 for cyber security
Advantech WISE-PaaS/EdgeLink support

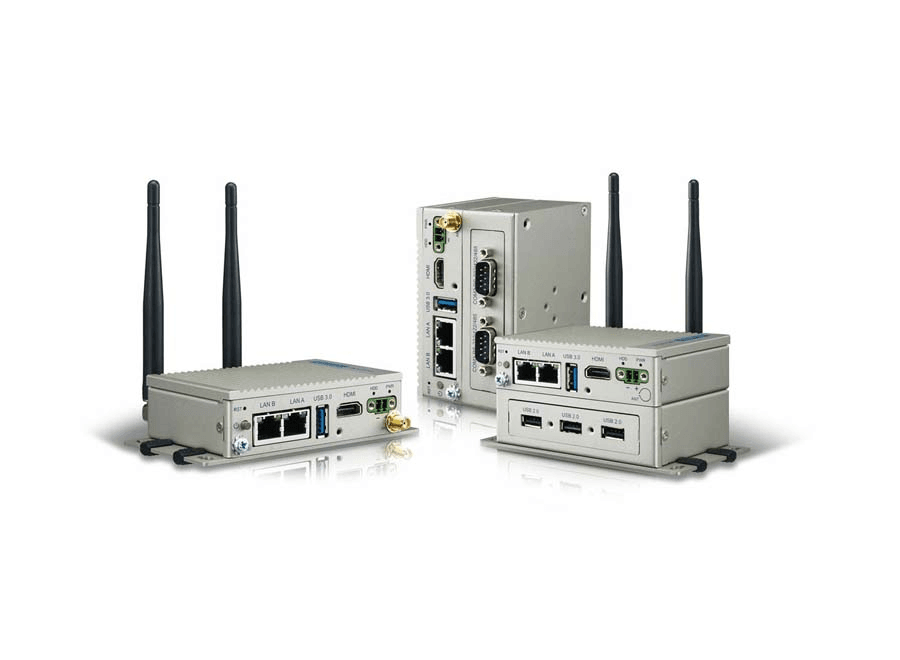

IIoT Gateway SeriesUNO-2271G

Pocket-Size Edge IoT Gateway with Intel® Atom™ E3815/E3825

Intel® Atom™ E3815/E3825 processor with 4GB DDR3L onboard memory
2 x GbE, 1 x USB 3.0, 1 x HDMI, Option 2 x RS-232/422/485 or 3 x USB2.0
Compact Fanless Design and Rubber Stopper Design with internal reserved screws for 2nd layer assembly
Diverse system I/O and Isolated Digital I/O by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/Wi-Fi communication by iDoor technology

IIoT Gateway SeriesUNO-247

IoT Edge Computer with Intel® Celeron® J3455

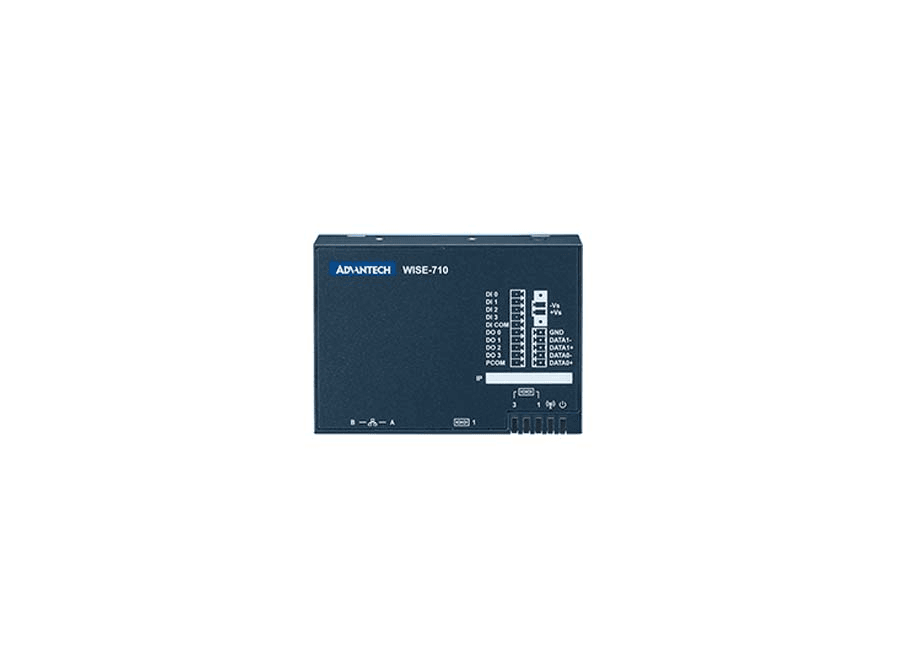

IIoT Gateway SeriesWISE-710

FreeScale i.MX 6 DualLite Industrial Protocol Gateway

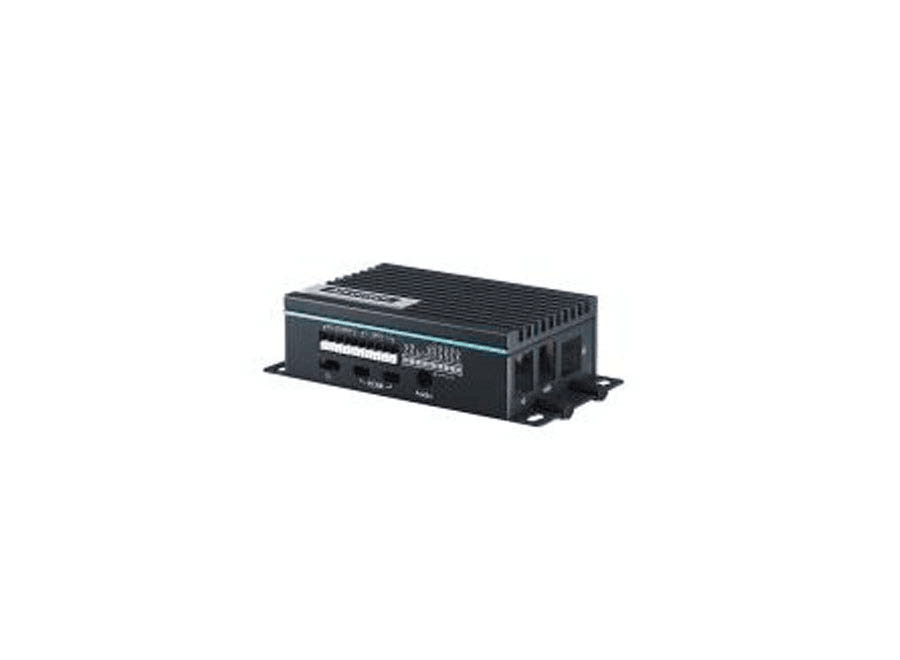

IIoT Gateway SeriesUNO-220

Industrial Raspberry Pi 4 HAT Gateway Kit

Protect your Raspberry Pi device from dust and temperature extremes.
Industrial-grade gateway kit provides Raspberry Pi-ready solutions for rapid prototyping.
Designed for Raspberry Pi single-board computers - Develop unique IoT applications
UNO-220 industrial-grade chassis transforms RPi 4 into a ruggedized gateway for shopfloor environment

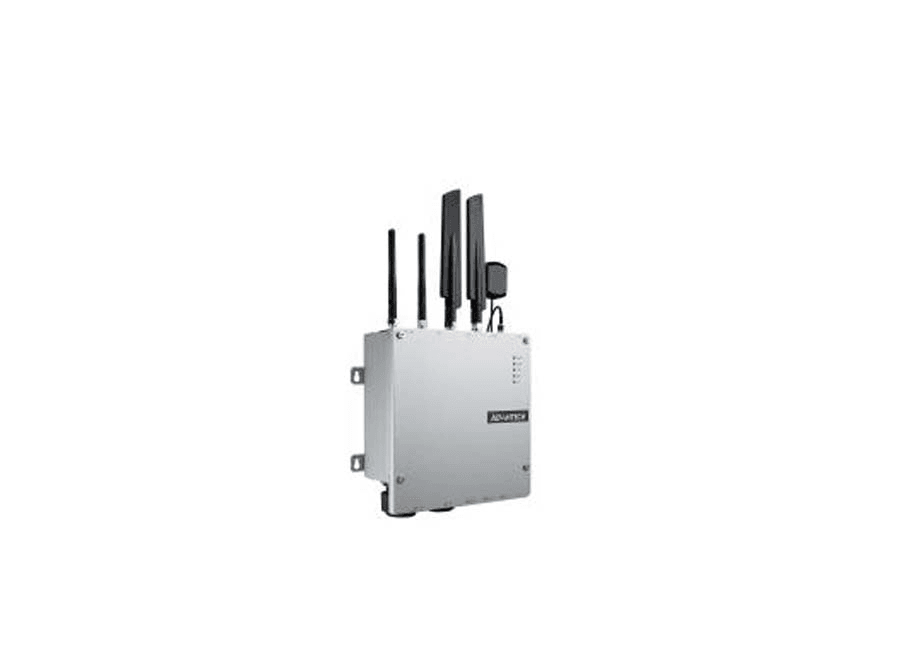

IIoT Gateway SeriesUNO-430

All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with Intel® Atom™ E3950

Intel® Atom E3950 Quad-core processor with 8G DDR3L memory
Reserve M.2 3052/3042 key B, M.2 2230 key E for Wi-Fi, LTE & GPS expansion
2 x GbE, 2 x RS-422/485 (isolated) ,1 x RS-232 (console) and hardware security TPM2.0
IP69K and IP68-rated protection from water and dust
-40~70°C wide operating temp design for harsh environment

IIoT Gateway SeriesUNO-238

Compact IoT Edge Computer with Intel® Core™ i CPU

IIoT Gateway SeriesUNO-220-P4N2

Industrial Raspberry Pi 4 HAT Gateway Kit with PoE Function

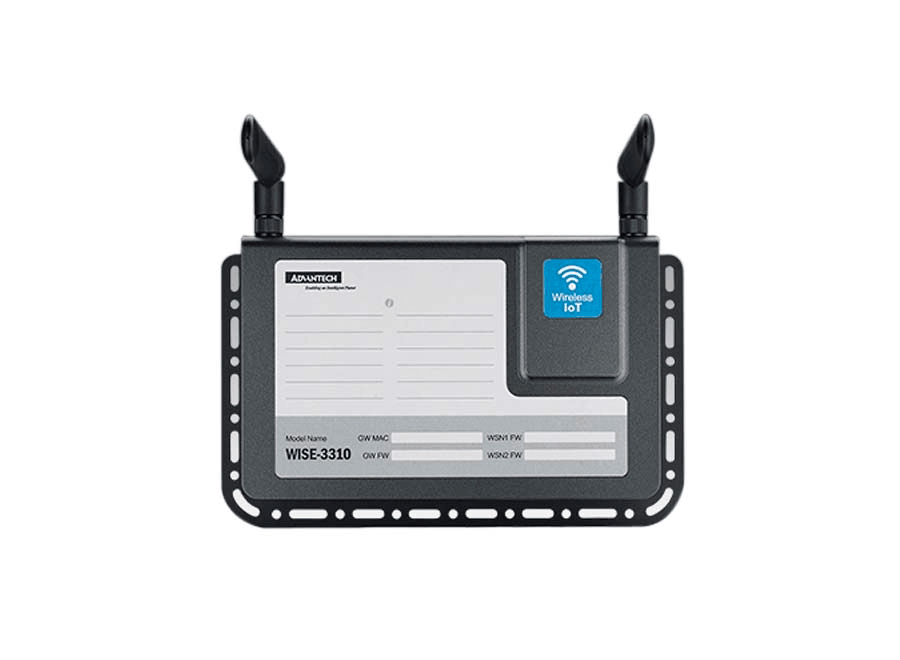

IIoT Gateway SeriesWISE-3310

Wireless IoT Mesh Network Gateway

All-in-One RISC-based Intelligent and Industrial platform with Freescale i.MX6 Dual Cortex-A9 1.0 GHz processor
Compliant to 6LoWPAN and IEEE 802.15.4e standards
Supports up to 100/ 200 Wireless nodes
Power saving mode and fanless design
Integrated with WISE-PaaS/RMM for IoT Software Platform

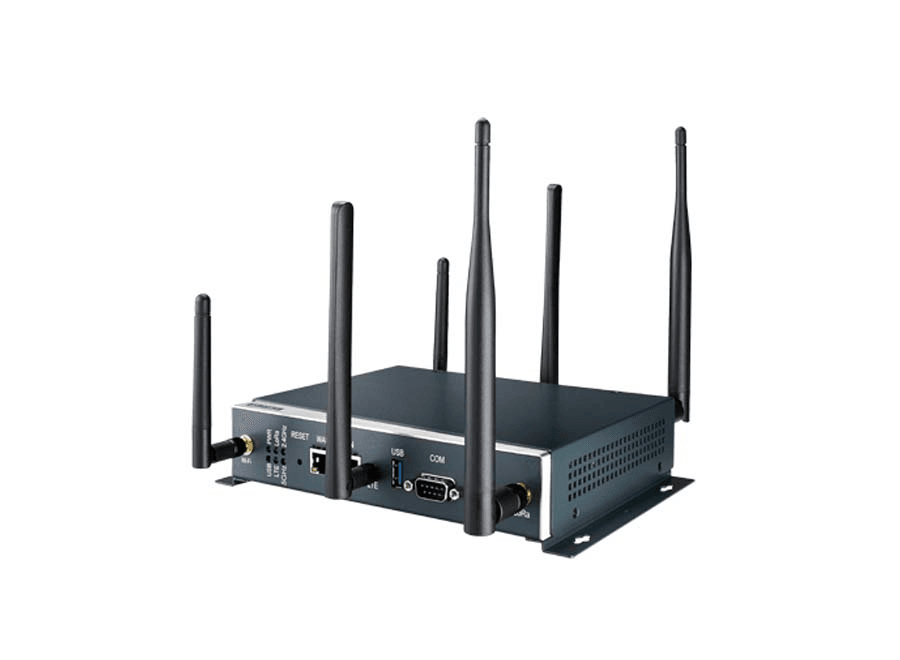

IIoT Gateway SeriesWISE-3610

Wireless IoT LoRa Private Network Gateway

Qualcomm Atheros Quard-Core ARM Cortex-A7 SoC
Built-in Dual Band Concurrent Wi-Fi MU-MIMO (2x2)
LPWAN LoRa Private (WISE-Link) Connectivity
WAN x1 / LAN x1 Gigabit Ethernet Integration of Modbus TCP and Modbus RTU networks
